| Description |

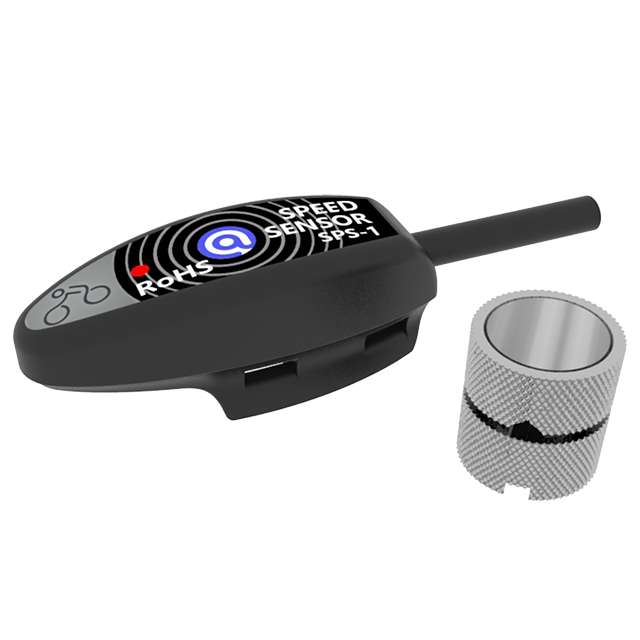

This is a speed sensor for bike ,well design , ,smaller size ,easily install; electric puless come out from
sensor and indicator on sensor will blink while wheel rotating ,bike control system measure the bike
speed accruately by this signal .
| Specification |
| Model | SPS-1 |
| Power | 5V |
| Signal | Pules |
| Housing material | Intensive ABS |
| Sensor Size | 38.5x14x15.5mm |
| Magnetic body | Copper |
| Net Wegiht | 12.8g |

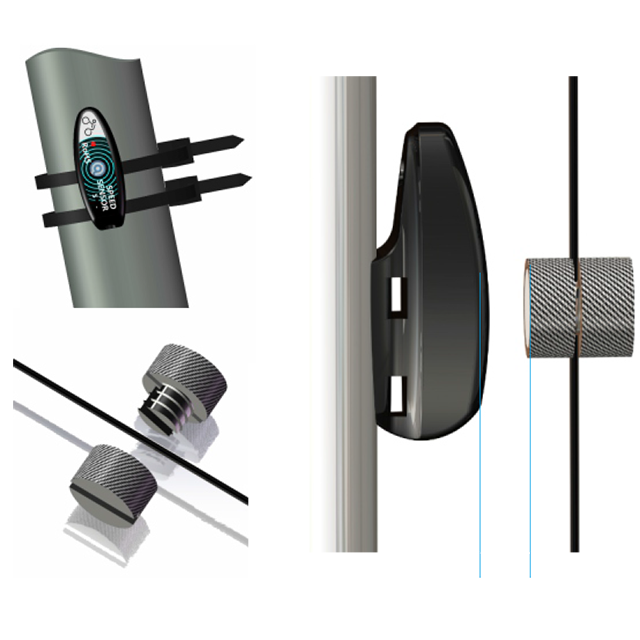

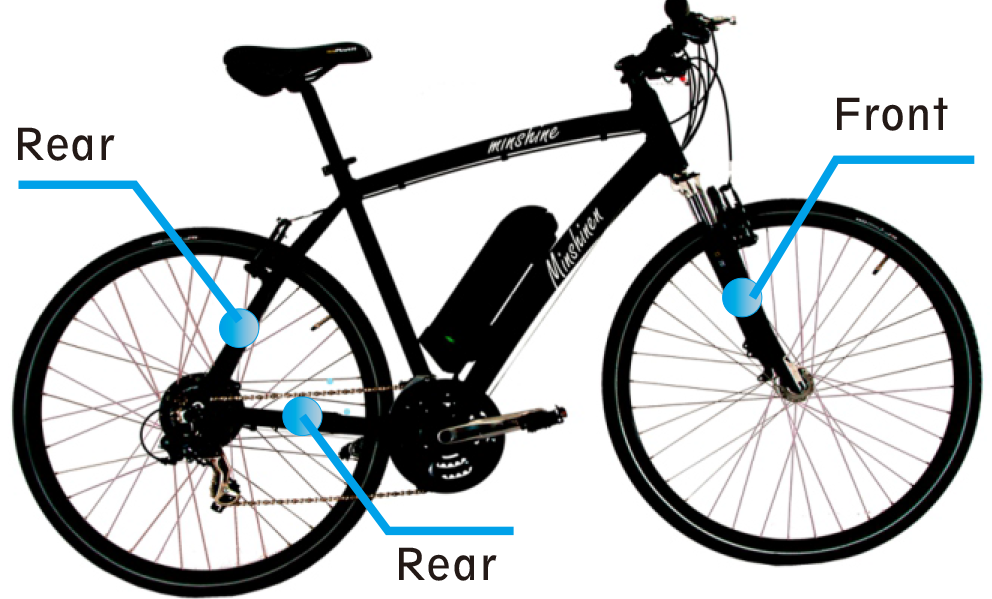

| Install Guide |
| Interface |
Connector : SM3 orOther
Red : VCC
Black : GND
White : Signal
Standby: Red Light
Forward: Long Red Blink
Reverse: Short Red Blink
Note: The max gap between sensor and Magnet is 10mm
