Home Controllers lishui Support Customized Specifications 48V 750w intelligent Brushless Motor ebike FOC controller Electric Bike conversion kit

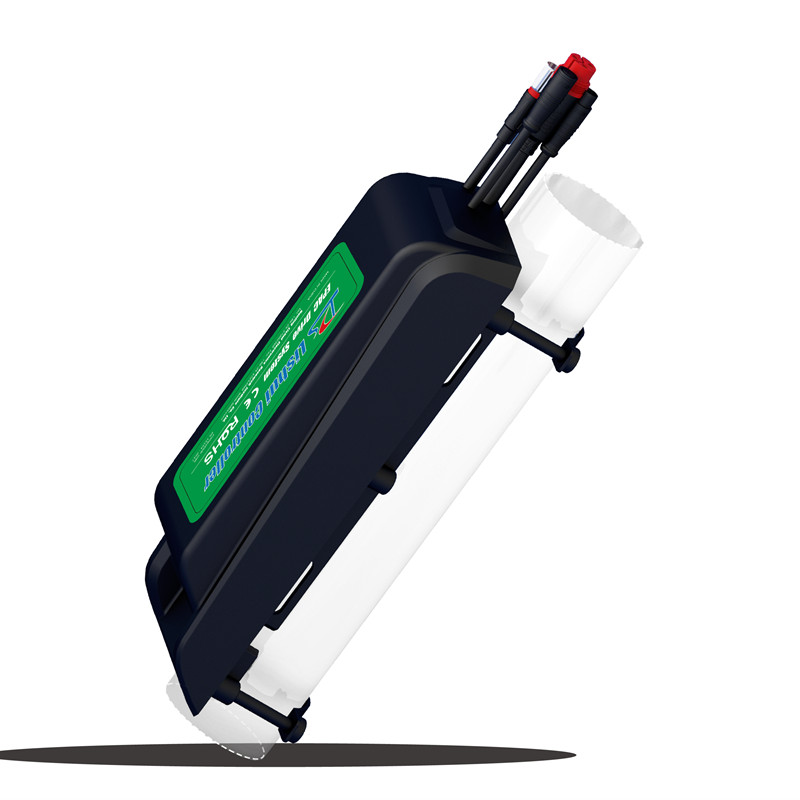

lishui Support Customized Specifications 48V 750w intelligent Brushless Motor ebike FOC controller Electric Bike conversion kit

All the controller specifications and functions are 100% guaranteed to pass the EN15194 test.

Name：LD-LS86

Size：115mm×63mm×33mm

Rated Voltage：48V

Rated Power：750W

paragraph1

Color

optional

Samples

≥1pcs

price

Depend on the configuration

Quantity:

库存： 0

Inquire

Add to Basket

Product Description

Specification

Size	115mm×63mm×33mm	Standby Power Consumption	<2W
Rated Voltage	DC48V	Housing Materials	Aluminum
Rated Power	750W	Water Proof	IPX6
Low Voltage protection	DC42V	Motor Matching	Sensored Motor /Sensorless Motor
Current Limit	30A(±0.5A)	Display Matching	LED Display/ LCD Display

Functions &Features

Super low noise	Reduce the motor torque ripple to minimum; achieve vehicle noise free, vibration-free and comfortable riding feeling.
High efficiency	Field oriented control(FOC)sine-wave driving technology allows higher system efficiency, lower heat loss and longer riding mileage.
Multiple Protections	Over-current protection,over-voltage/under-voltage protection, overheat protection, runaway protection, short-circuit protection, phase wire disconnect protection, blockage protection.
Auto-sleep	When parking for more than 10 minutes without any operation, the system auto-matically power off to save battery power.
Flexible configuration	Parameter settings can be modified through USB interface with the computer, or through display. Parameter include current limit value, low voltage protection value, sensor type, maximum speed, power ratio etc
