electric plug waterproof 2 3 4 5 6 pin cable connector for ebike E-motorcycle E-wheelchair e-scooter

paragraph1

Pins

Samples

≥1

price

Depend on quantity

Quantity:

库存： 0

Inquire

Add to Basket

Product Description

Electrical Characteristics

Rated Voltage	48V AC/DC
Rated Current	2A
Withstand Voltage	500VDC
Contact Resistance	<10mΩ
Insulation Resistance	>20MΩ

Mechanical Characteristics

Durability	200 Cycles
Mating and unmating force	Screw locking

Environmental Characteristics

Operating Temperature	-25 ℃ ~ 80℃
IP Rating	IP67

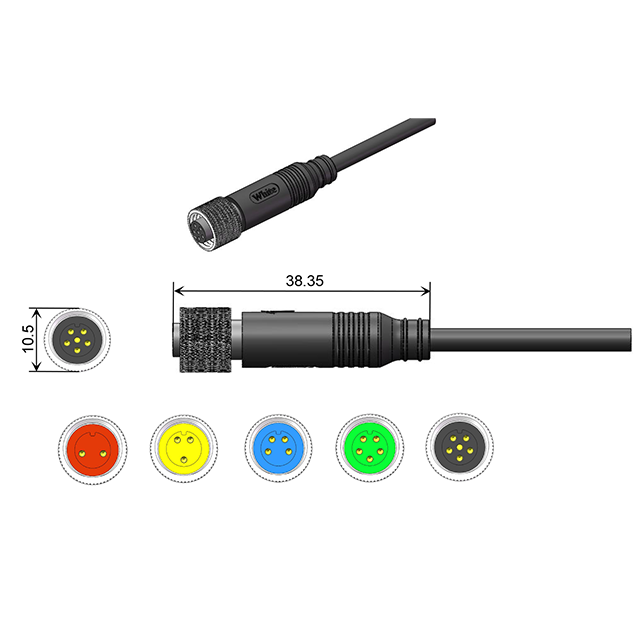

Product Specification

Product Size	ᴓ10.5mm
Mating Length	72.9mm
Terminal	Gold-plated Copper
Wire Specification	0.14mm²/0.20mm²
