Rated Power: 250W
Pedal Sensor : Torque
Shaft Standard : JIS
Bike Recommendation : E-CITY/E-ROAD
Pedal Sensor : Torque
Shaft Standard : JIS
Bike Recommendation : E-CITY/E-ROAD
paragraph1
Color
BLAKE
Samples
≥1pcs
price
Depend on quantity
Quantity:
库存： 0
Inquire
Add to Basket
| Product parameters |
| Bike Recommendation | E-CITY | n0(Rpm) | 66/94 |
| Size (L x W x H) | 176x 156 x 136mm | Power Assist Ratio | 36%~300% |

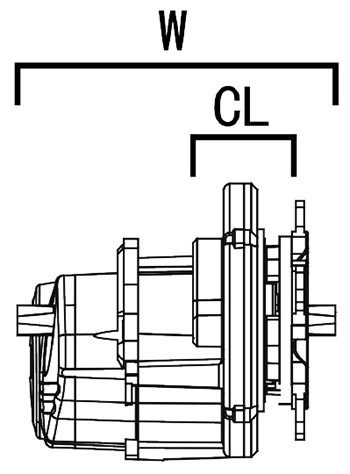

| (CL) | 49mm | Pedal Sensor | Torque |
| Rated Power | 250W | Shaft Standard | JIS |
| Efficiency(%) | ≥80 | Noise Grade (dB) | ＜55 |
| Reduction Ratio | 41 | Throttle | Optional |
| Wheel Size(Inch) | Optional | E-Brake | Yes |
| Rated Voltage(DCV) | 24V/36V/48V | Light Drive Capacity | 6/2 |
| Max Torque(N.m) | 80 | IP Level / Salt Spray Test | 65/96 |
| Weight(kg) | 3.5 | Certification | CE/RoHS/EN 15194 |
