Rated Power: 250W
Installation Widths (mm/OLD) : 100mm
Max Torque(N.m) : 30
Bike Recommendation : E-ROAD
Product description: The best front hub motor for eCity Bike,eCommuting Bike, eFolding Bike Mini front hub motor for electric bicycle 36V 250W Max torque:30 N.m Speed: 25 km/h
Installation Widths (mm/OLD) : 100mm
Max Torque(N.m) : 30
Bike Recommendation : E-ROAD
Product description: The best front hub motor for eCity Bike,eCommuting Bike, eFolding Bike Mini front hub motor for electric bicycle 36V 250W Max torque:30 N.m Speed: 25 km/h
paragraph1
Color
Black / Silver
Samples
≥1pcs
price
Depend on quantity
Quantity:
库存： 0
Inquire
Add to Basket
| Features |
AKM75SX motor is a Small in size, light in weight, high in efficiency and smooth & quiet running.The front-drive motor is compatible with both disc or rim brakes,has a rated power of 250 W ,30 N.m max torque. 75SX, 85SX, 100SX Front Wheel Motor 250W Electric Bike Conversion Kit, Hub Motor E-Bike kit drive system is ideal for light and stylish city eBikes,folding electric bicycle,urban cycling. It is more convenient to replace and repair than other motors in the installation position.
| Product parameters |

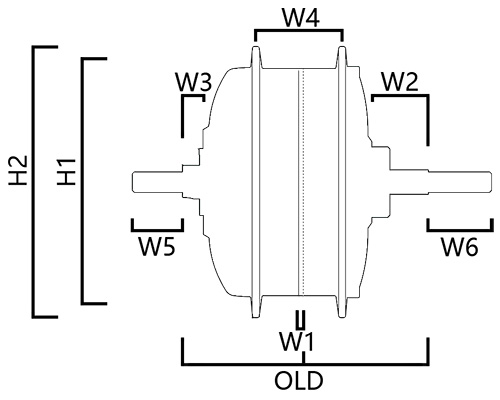

| Bike Recommendation | E-ROAD | Size : H1 / H2 | 99(83)mm / 110(95)mm |
| W1 / W2 | 1.2mm / 5.8mm | W3 / W4 | 10.5mm / 51mm |
| W5 / W6 | 26mm / 26mm | Installation Widths (mm/OLD) | 100mm |
| Rated Power | 250W | Rated Voltage(DCV) | 24V/36V |
| Wheel Size(Inch) | 16"~28" | Max Torque(N.m) | 30 |
| Efficiency(%) | ≥80 | Weight (kg) | 1.5 |
| Speed(km) | 25 | Noise Grade (dB) | ＜55 |
| Operating Temperature | -20℃~45℃ | Cabling Route | Optional |
| Spoke Parameter | 36H*13G (Optional) | Line Way | Left |
| IP Level | 65 | Certification | CE/RoHS/EN 15194 |
