Waterproof plug signal connector Stable performance small size for ebike electric bicycle E-motorcycle E-wheelchair E-scooter Swappable system Charging point
Waterproof plug signal connector Stable performance small size for ebike electric bicycle E-motorcycle E-wheelchair E-scooter Swappable system Charging point
Waterproof plug signal connector Stable performance small size for ebike electric bicycle E-motorcycle E-wheelchair E-scooter Swappable system Charging point
Waterproof plug signal connector Stable performance small size for ebike electric bicycle E-motorcycle E-wheelchair E-scooter Swappable system Charging point
paragraph1

Pins

2P
3P
4P
5P
6P

Samples

≥1

price

Depend on quantity
Quantity:
库存: 0
Inquire
Add to Basket
Electrical Characteristics
Rated Voltage48V AC/DC
Rated Current2A
Withstand Voltage500VDC
Contact Resistance

<10mΩ

Insulation Resistance>20MΩ
Mechanical Characteristics
Durability

200 Cycles

Mating and unmating force30N ~ 80N
Environmental Characteristics
Operating Temperature-25 ℃ ~ 80℃
IP Rating

IP66

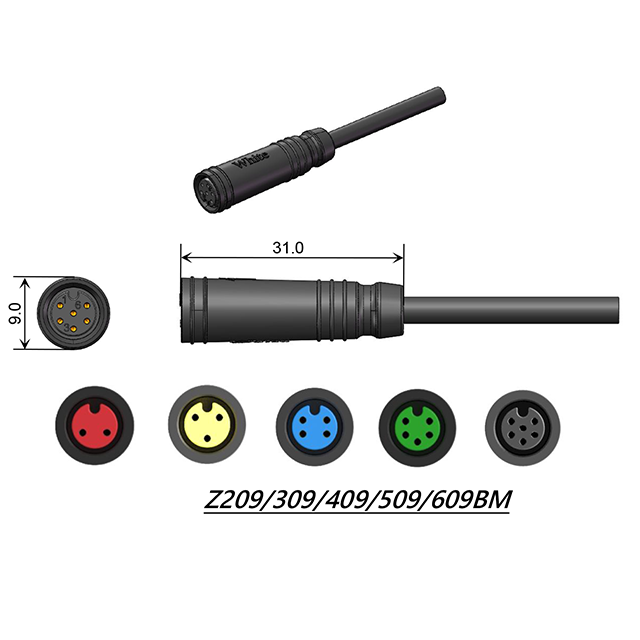

Product Specification
Product Sizeᴓ9.0mm
Mating Length56.0mm
TerminalGold-plated Copper
Wire Specification0.14mm²/0.20mm²
