Top selling down tube battery hard case ebike battery quick charge with pcb board lithium battery box
Top selling down tube battery hard case ebike battery quick charge with pcb board lithium battery box
Top selling down tube battery hard case ebike battery quick charge with pcb board lithium battery box
Top selling down tube battery hard case ebike battery quick charge with pcb board lithium battery box
paragraph1

Color

optional

Samples

≥1pcs

price

Depend on quantity
Quantity:
库存: 0
Inquire
Add to Basket
Informations
  • Battery can be equipped with Samsung cell,LG cell,Panasonic cell or High power Chinese 18650 cell.

  • Battery can be customized as your requirements

  • OEM/ODM orders are welcomed

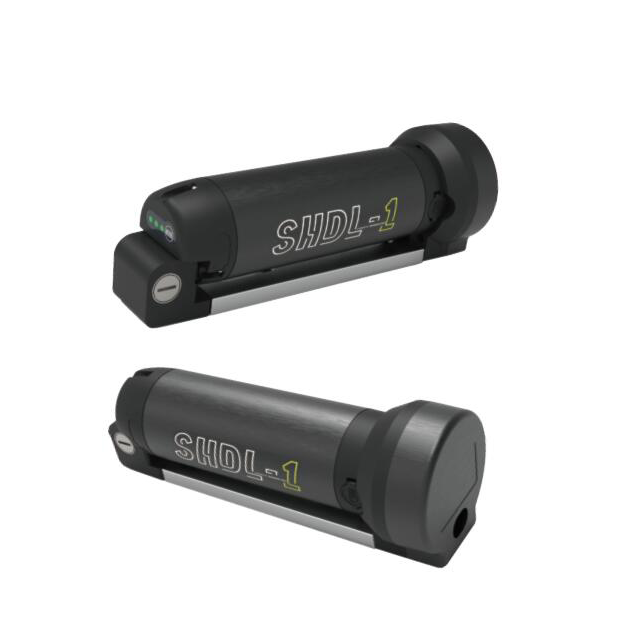

Product Photos

主图640尺寸图

Lithium Battery Features
  • Safety: safest Li-Ion battery, CE ROHS approved, built in PCM/PCB, none fire or explosive;

  • Clean and Green energy, no toxic material contained;

  • Long life cycle, 80% capacity remain after 500 times deep cycle;

  • No memory effect,highly efficient charge anytime, no reduction of capacity;

  • Operation temperature: -20~60°C;

  • Small size, light weight;

  • Good performance at high temperature and high temperature resistance;

  • Low self-discharge rate: < 3% monthly;


Li-ion Battery Details
  • Lithium cylindrical rechargeable batteries with PCB protection;

  • Internal PCB protection (patent pending design) protect battery from over charge,over discharge,over current and short circuit;

  • Manufactured under CE,ROHS to assure quality;

  • Battery tested before delivery to ensure capacity, quality and lifetime;

  • Pollution-Free/Long Cycle Life/Good Consistency;

  • No memory effect ;

  • Large manufacturers, short delivery time, price advantage;


Battery Technical Data

Max cell space18650  14pcs
Configration7S2P
MaterialPC+ABS
Charging portDC2.1 port
Discharging portSelf-made 4pin
LockMechanical  lock
Capacity indicator3 Lever LED capacity indicator
Working temperature0~45℃(charge);-20~60℃(discharge)
Charge modeCCCV
Warranty1 Year



Vibration Test

After standard charging, put battery on the vibration table. 30min experiment from X, Y, Z axis. Scan rate: 1oct/min; Frequency10-30Hz, Swing 0.38mm; Frequency 30-55Hz, Swing 0.19mm.no influence to batteries electrical performance and appearance.
