Signal connectors 12Pin IP66 Waterproof Cable Connectors plug High quality male female electric bike
Signal connectors 12Pin IP66 Waterproof Cable Connectors plug High quality male female electric bike
Signal connectors 12Pin IP66 Waterproof Cable Connectors plug High quality male female electric bike
Signal connectors 12Pin IP66 Waterproof Cable Connectors plug High quality male female electric bike
paragraph1

Pins

12Pin

Samples

≥1

price

Depend on quantity
Quantity:
库存: 0
Inquire
Add to Basket
Electrical Characteristics
Rated Voltage48V AC/DC
Rated Current2A
Withstand Voltage500VDC
Contact Resistance<10mΩ
Insulation Resistance>20MΩ
Mechanical Characteristics
Durability200 Cycles
Mating and unmating force30N ~ 80N
Environmental Characteristics
Operating Temperature-25 ℃ ~ 80℃
IP RatingIP66
Product Specification

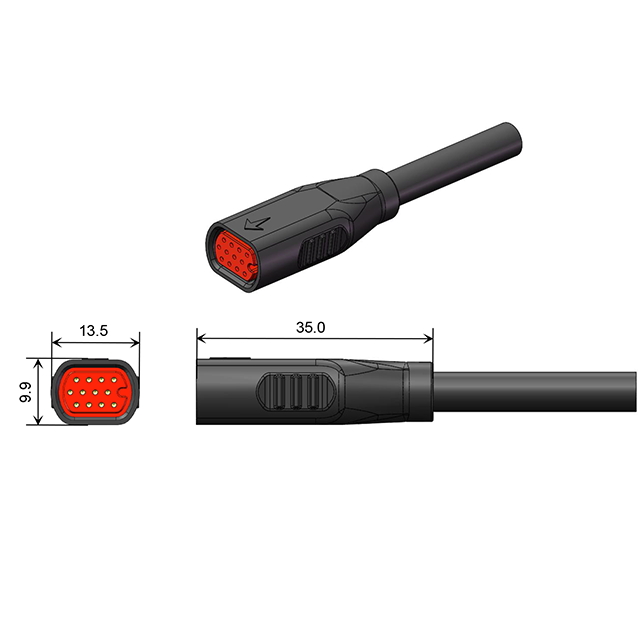

Product Sizeᴓ13.5mm
Mating Length64.2mm
TerminalGold-plated Copper
Wire Specification0.14mm²/0.20mm²
