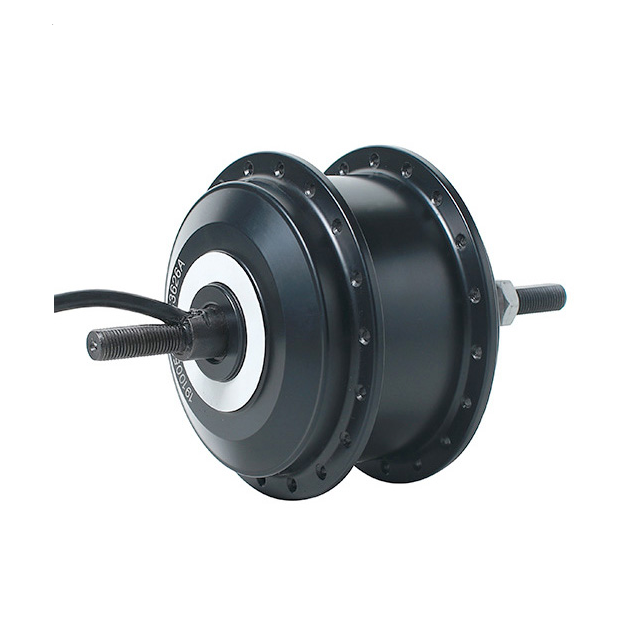

Product description: Aikema 100SX rear hub motor,
rated power 250W, maximum torque 50N.m,
suitable for 20 "~28" wheel diameter city bikes.
Certification:CE/RoHS/EN 15194
paragraph1
Color
Black
Silver
Samples
≥1pcs
price
Depend on quantity
Quantity:
库存： 0
Inquire
Add to Basket
| Product parameters |
| Bike Recommendation | E-CITY | Efficiency(%) | ≥80 |

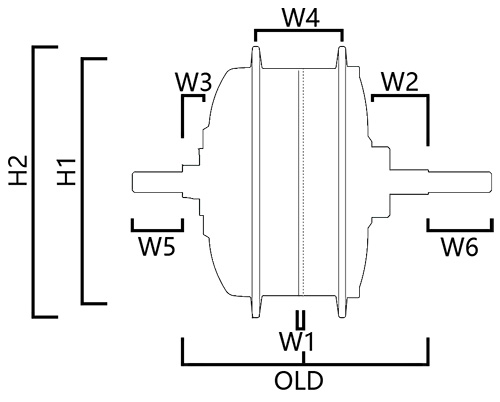

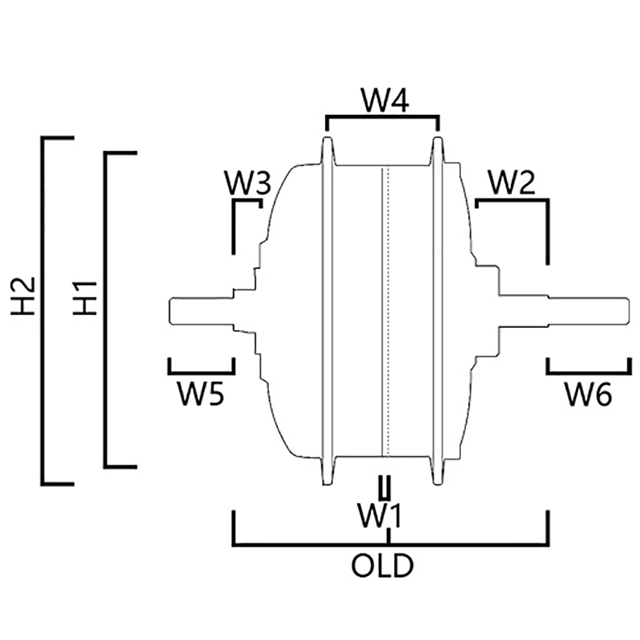

| Size : H1 / H2 | 109mm / 120mm | Weight (kg) | 2.1 |
| W1 / W2 | 8mm / 39.8mm | Speed(km) | 25 |
| W3 / W4 | 15.5mm / 47mm | Noise Grade (dB) | ＜55 |
| W5 / W6 | 25mm / 27.5mm | Operating Temperature | -20℃~45℃ |
| Installation Widths (mm/OLD) | 138.5mm | Cabling Route | Optional |
| Rated Power | 250W | Spoke Parameter | 36H*13G (Optional) |
| Rated Voltage(DCV) | 24V/36V/48V | Line Way | Left |
| Wheel Size(Inch) | 20"~28" | IP Level | 65 |
| Max Torque(N.m) | 50 | Certification | CE/RoHS/EN 15194 |
