Product Detail

Home Batteries Battery Case Carrier Type Battery Case Production customization US EU AU Rear Rack Rechargeable Cushion type Seismic and explosion-proof Lithium Ebike Battery 48V10.4Ah
Production customization US EU AU Rear Rack Rechargeable Cushion type Seismic and explosion-proof Lithium Ebike Battery 48V10.4Ah
Production customization US EU AU Rear Rack Rechargeable Cushion type Seismic and explosion-proof Lithium Ebike Battery 48V10.4Ah
Production customization US EU AU Rear Rack Rechargeable Cushion type Seismic and explosion-proof Lithium Ebike Battery 48V10.4Ah
Production customization US EU AU Rear Rack Rechargeable Cushion type Seismic and explosion-proof Lithium Ebike Battery 48V10.4Ah
Production customization US EU AU Rear Rack Rechargeable Cushion type Seismic and explosion-proof Lithium Ebike Battery 48V10.4Ah
Production customization US EU AU Rear Rack Rechargeable Cushion type Seismic and explosion-proof Lithium Ebike Battery 48V10.4Ah
paragraph1

Color

optional

Samples

≥1pcs

price

Depend on the configuration
Quantity:
库存: 0
Inquire
Add to Basket
Informations
  • Battery can be equipped with Samsung cell,LG cell,Panasonic cell or High power Chinese 18650 cell.

  • Battery can be customized as your requirements

  • OEM/ODM orders are welcomed

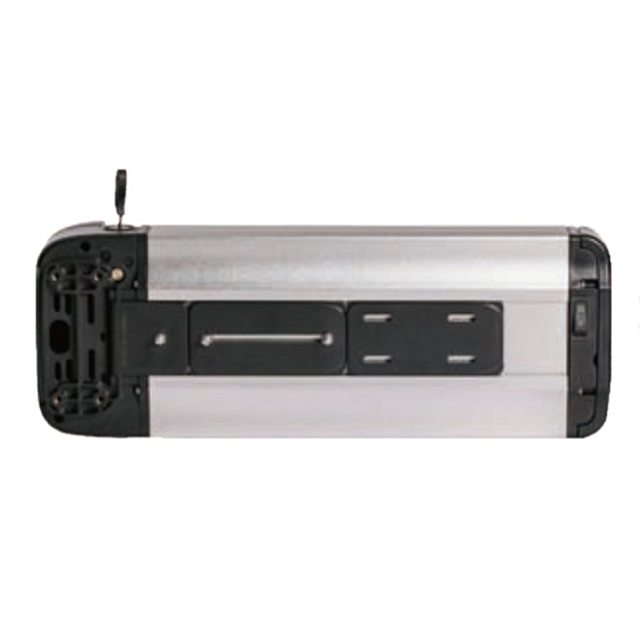

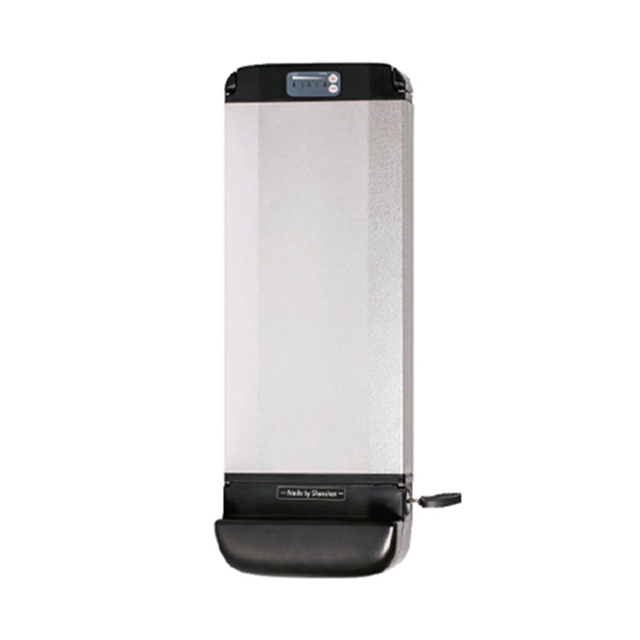

Product Photos

主图1主图2

主图3

Lithium Battery Features
  • Safety: safest Li-Ion battery, CE ROHS approved, built in PCM/PCB, none fire or explosive;

  • Clean and Green energy, no toxic material contained;

  • Long life cycle, 80% capacity remain after 500 times deep cycle;

  • No memory effect,highly efficient charge anytime, no reduction of capacity;

  • Operation temperature: -20~60°C;

  • Small size, light weight;

  • Good performance at high temperature and high temperature resistance;

  • Low self-discharge rate: < 3% monthly;


Li-ion Battery Details
  • Lithium cylindrical rechargeable batteries with PCB protection;

  • Internal PCB protection (patent pending design) protect battery from over charge,over discharge,over current and short circuit;

  • Manufactured under CE,ROHS to assure quality;

  • Battery tested before delivery to ensure capacity, quality and lifetime;

  • Pollution-Free/Long Cycle Life/Good Consistency;

  • No memory effect ;

  • Large manufacturers, short delivery time, price advantage;


Product Description
  • This is a power lithium battery pack placed in the back seat of the electric bicycle. The shell material is made of aluminum alloy and ABS material. The built-in cell support is anti-seismic and explosion-proof, 5-lamp LED power display, direct mechanical lock switch and convenient disassembly structure. BMS parameters can be customized according to customer needs.


Battery Technical Data
Nominal Voltage48V
Nominal Capacity10.4Ah
Shipments voltage
>46.8V (30% power)
Charge modeCCCV
Working temperature0~45℃(charge);-20~60℃(discharge)

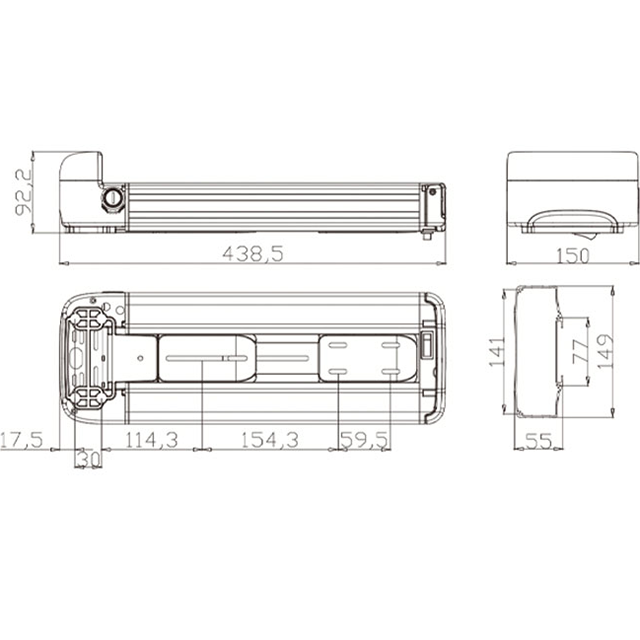

Product specification10S5P or 13S4P    L 438.5 * W 150* H 55 mm
Circle life>=1000 cycles
Warranty1 Year
WeightSubject to the real object



Vibration Test

After standard charging, put battery on the vibration table. 30min experiment from X, Y, Z axis. Scan rate: 1oct/min; Frequency10-30Hz, Swing 0.38mm; Frequency 30-55Hz, Swing 0.19mm.
no influence to batteries electrical performance and appearance.
