| Description |

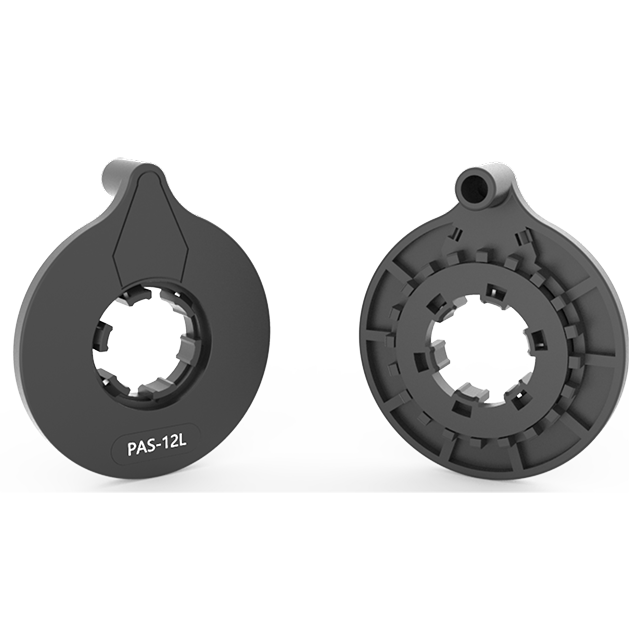

This is an Integrated sensor, it can be fixed at left or right side of bottom brackets .
The main features of this sensor is very thinner.
Automatic moving direction detect , so this sensor can check the moving direction while pedaling,sending out signal when forward and stop sending when backwards.
| Specification |
| Model | PAS12L /R |
| Power | 5V/2mA |
| Signal | Forward-12Pules Per Circle,Reverse -None |
| Material | PC |
| Wegiht | 7.8g |
| Axel Size | 15-15.8mm |
| Interface |
Connector : SM3 or Others
Red : VCC
Black : GND
White : Signal

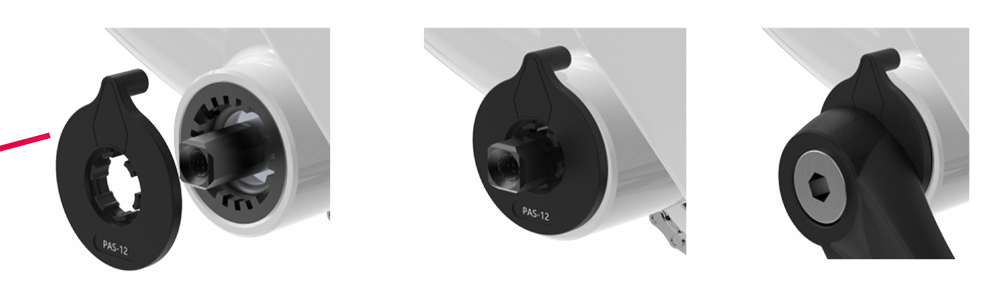

| Install Guide |
