Free Shipping PAS Pedal Assist Sensor KT-V12L D12L BZ-4 6 Magnets Dual hall senssors 12 Signals for ebike kit

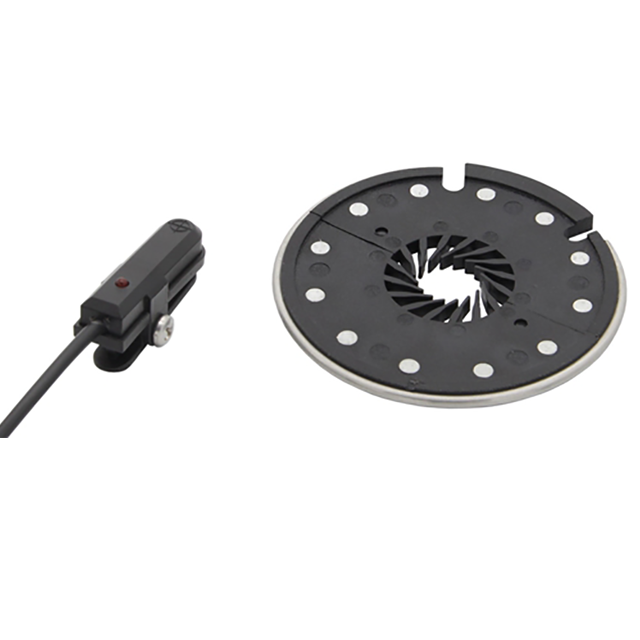

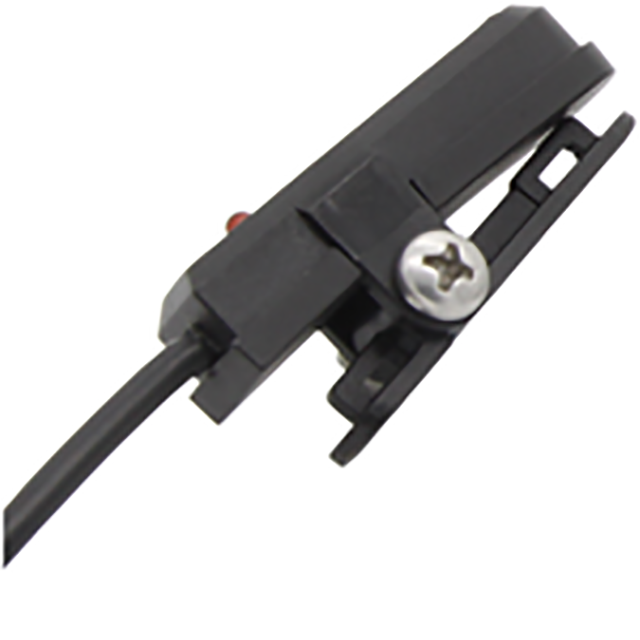

The KT-D12 booster sensor has 12 signal outputs, fast booster response, good accuracy, strong waterproofness and high reliability. Easy and quick installation and disassembly. The sensor is divided into two types: left-side installation and right-side installation, which can be installed in different positions and are suitable for various models.

• Left KT-D12L

• Right KT-D12R


• To install the KT-D12L power assist sensor, the sensor can be directly installed on the central axle of the electric bicycle without removing the crank.

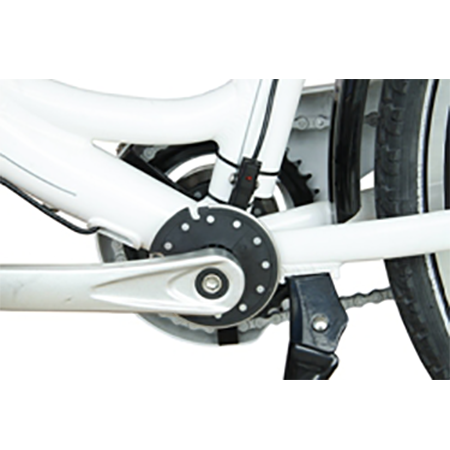

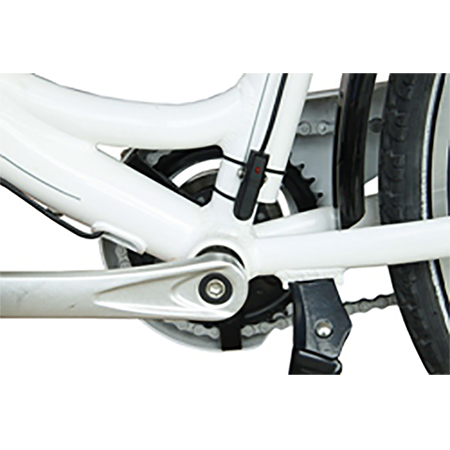

         Secure the sensor with cable ties                                                              Install the magnetic disc

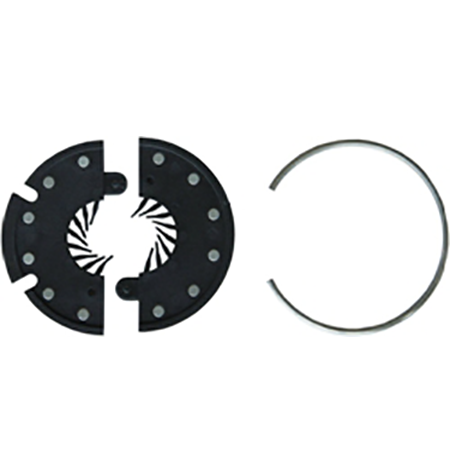

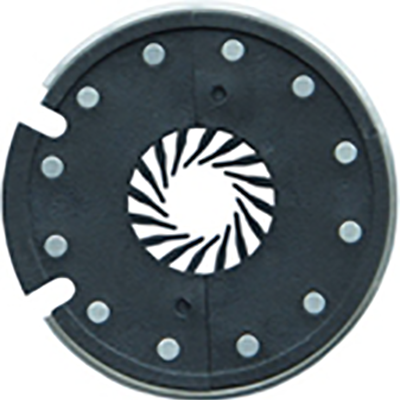

• For the assembly of the magnetic steel plate, insert the two magnetic steel plates against each other as shown in the figure below, and fix them with a circlip. The assembled magnetic steel plate is shown in the figure.
