11 pins IP65 Waterproof Cable Connector in E-Bike Electrical Connectors

paragraph1

Pins

8Pin

9Pin

10Pin

11Pin

Samples

≥1

price

Depend on quantity

Quantity:

库存： 0

Inquire

Add to Basket

Product Description

Electrical Characteristics

Rated Voltage	48V AC/DC
Rated Current	2A
Withstand Voltage	500VDC
Contact Resistance	<10mΩ
Insulation Resistance	>20MΩ

Mechanical Characteristics

Durability	200 Cycles
Mating and unmating force	30N ~ 80N

Environmental Characteristics

Operating Temperature	-25 ℃ ~ 80℃
IP Rating	IP65

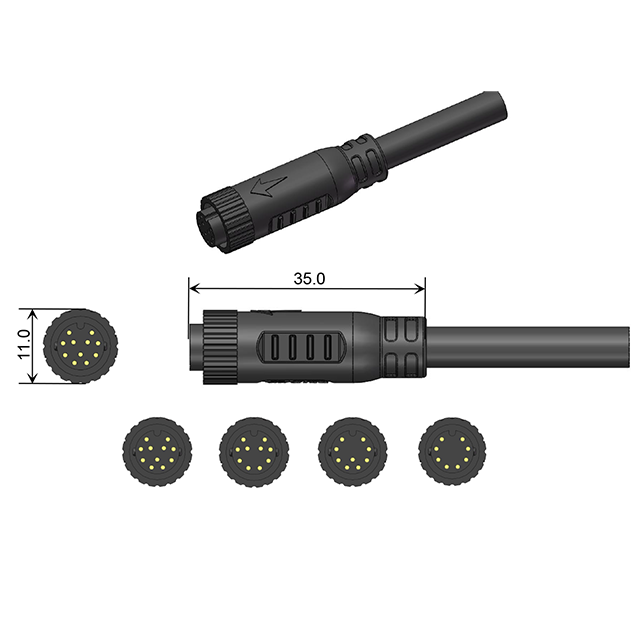

Product Specification

Product Size	ᴓ11.0mm
Mating Length	66.0mm
Terminal	Gold-plated Copper
Wire Specification	0.14mm²/0.20mm²
