paragraph1
Color
Black
Samples
≥1pcs
price
Depend on quantity
Quantity:
库存： 0
Inquire
Add to Basket
| Description |

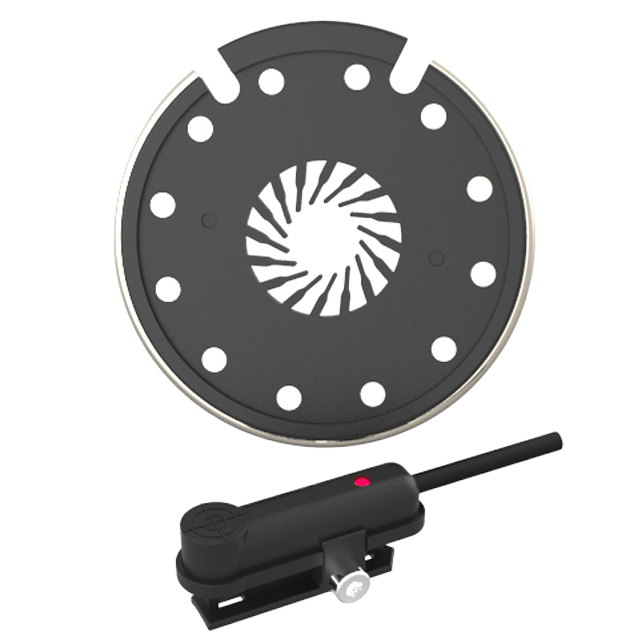

PAS-DH12 is a pedal assist sensor for bike, it was combined with 3 parts , a disc with 12 magnet , a sensor , and a Holding ring, do not need any tools to fix this sensor on bike ,so installation will be more easily , it was widely used for ebike convertion kits .
Automatic moving direction detect , so this sensor can check the moving direction while pedaling , sending out signal when forward and stop sending when backwards.
There have a indicator on sensor , it can help user to check the sensor is working or not .
| Specification |
| Model | PAS-DH12 |
| Power | 5V/2mA |
| Signal | Forward-12Pules Per Circle Reverse -None |
| Indicator | Red Light |
| Material | PC |
| Wegiht | 7.8g |
| Axel Size | 15-15.8mm |

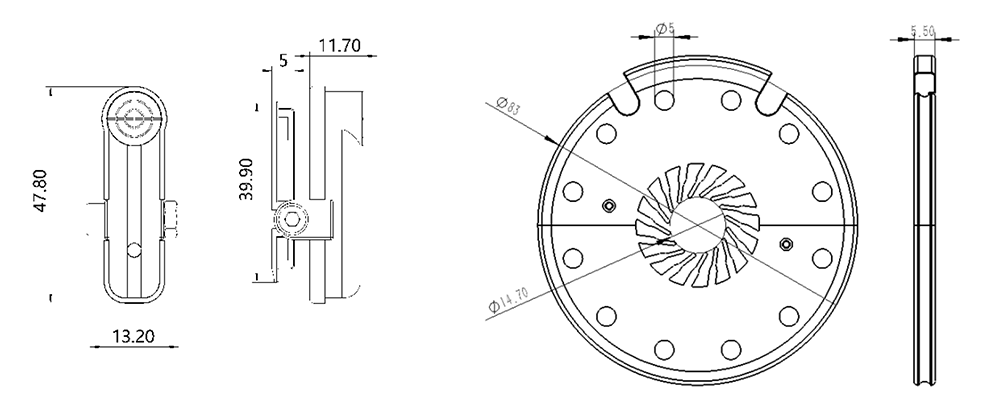

| Appearance and size |

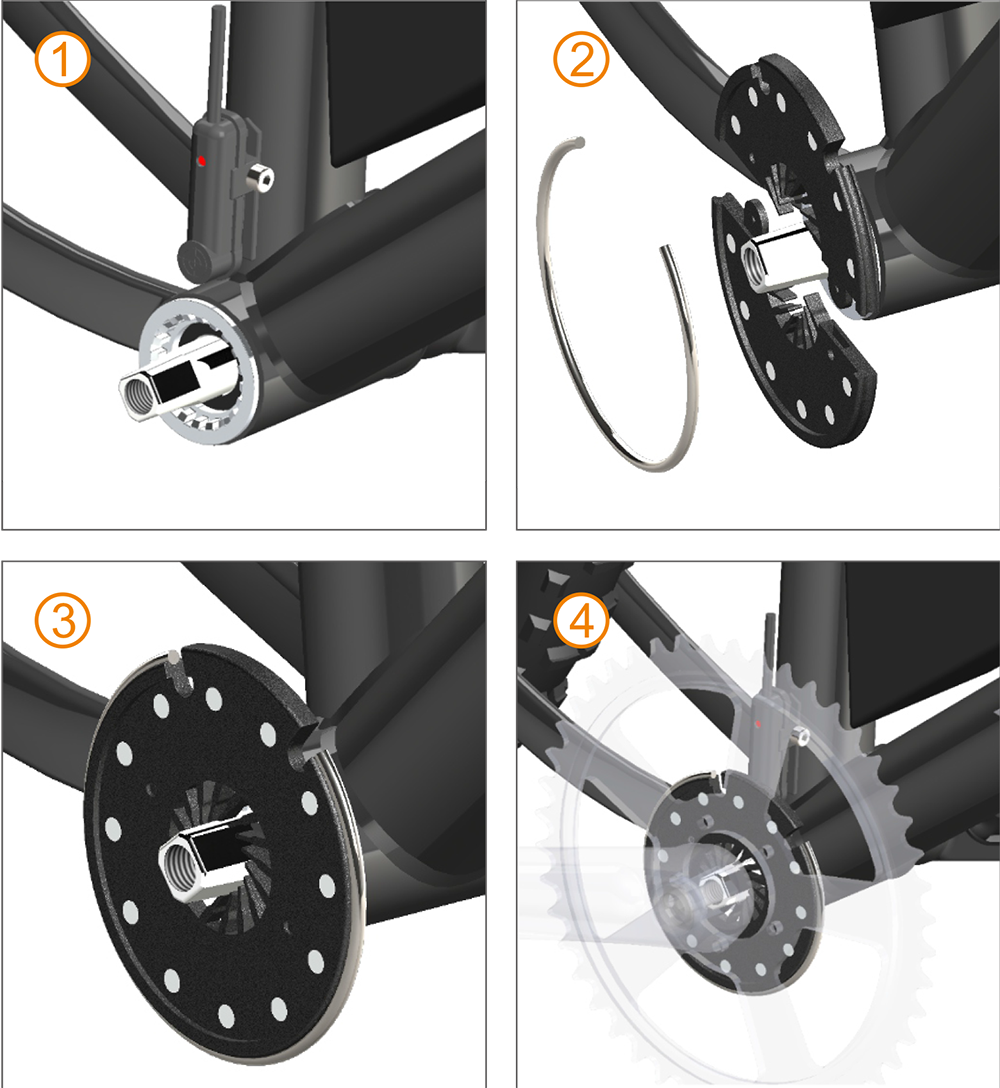

| Installation Instructions |
