Home Motors Electric Bicycle waterproof IP65 Brushless Hub Motor 24v 36v 48v 250w front wheel Motor Electric Bike ebike conversion kit

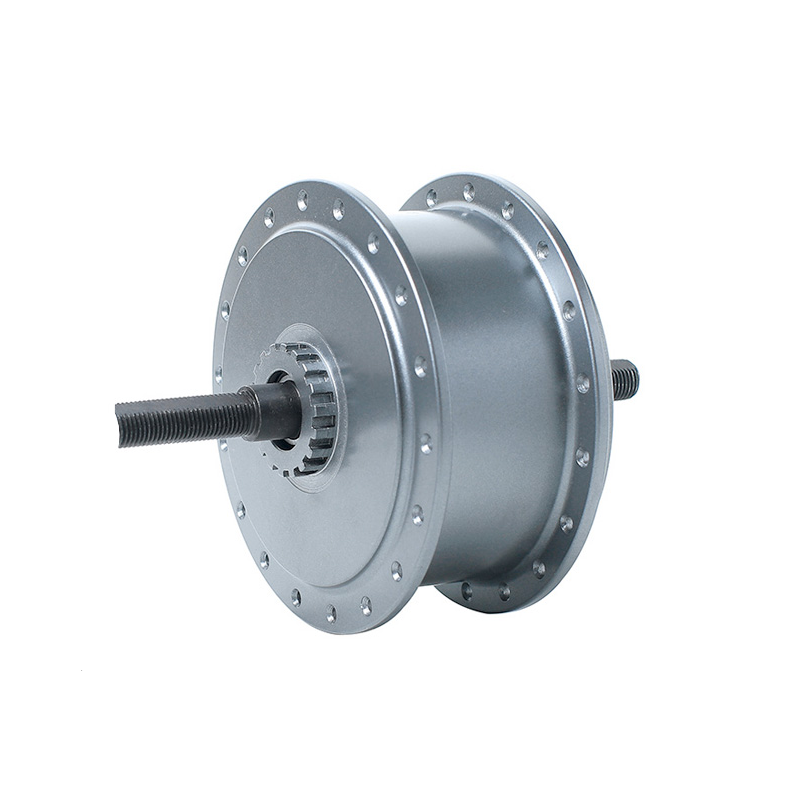

Electric Bicycle waterproof IP65 Brushless Hub Motor 24v 36v 48v 250w front wheel Motor Electric Bike ebike conversion kit

Rated Power: 250W
Installation Widths (mm/OLD) : 100mm
Max Torque(N.m) : 42
Bike Recommendation : E-ROAD

paragraph1

Color

Black / Silver

Samples

≥1pcs

price

Depend on quantity

Quantity:

库存： 0

Inquire

Add to Basket

Product Description

Features

Our 85SX Series e-bike front hub motor is one of the best electric bike motors on the market.The features are lightweight , weight 1.8kg, Max torque 30N.m , efficiency 80%.

Product parameters

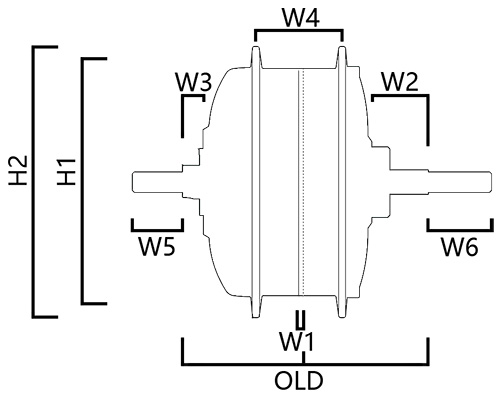

1632720364431149

Bike Recommendation	E-ROAD	Size : H1 / H2	109mm / 120mm
W1 / W2	1mm / 6mm	W3 / W4	22mm / 47mm
W5 / W6	32mm / 30mm	Installation Widths (mm/OLD)	100mm
Rated Power	250W	Rated Voltage(DCV)	24V/36V/48V
Wheel Size(Inch)	20"~28"	Max Torque(N.m)	42
Efficiency(%)	≥80	Weight (kg)	1.8
Speed(km)	25	Noise Grade (dB)	＜55
Operating Temperature	-20℃~45℃	Cabling Route	Optional
Spoke Parameter	36H*13G (Optional)	Line Way	Left
IP Level	65	Certification	CE/RoHS/EN 15194
