| Description |

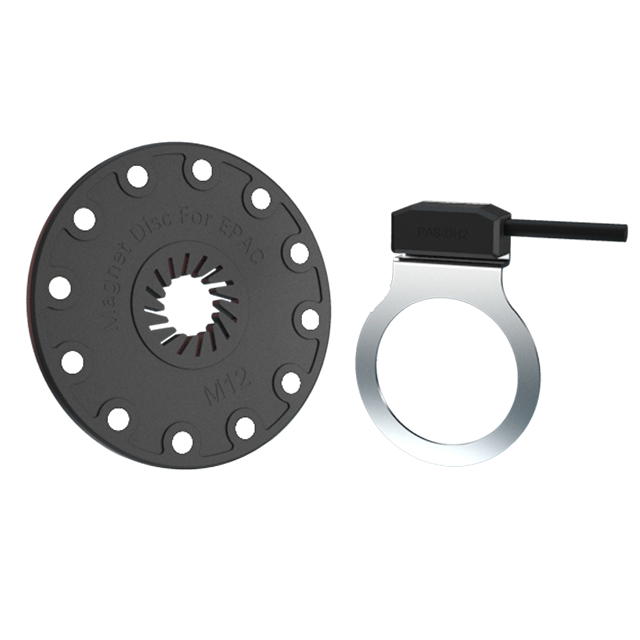

PAS-D12 is a pedal assist sensor for bike, it was combined with 2 parts , one is a disc with
12 magnet ,other is a sensor.
Automatic moving direction detect , so this sensor can check the moving direction
while pedaling , sending out signal when forward and stop sending when backwards.
There have a indicator on sensor , it can help user to check the sensor is working or
not . Or check the installation is correct or not .
| Specification |
| Model | PAS-D12 |
| Power | 5V/2mA |
| Signal | Forward-12Pules Per Circle Reverse -None |
| Indicator | Red Light |
| Material | PC |
| Wegiht | 7.8g |
| Axel Size | 15-15.8mm |

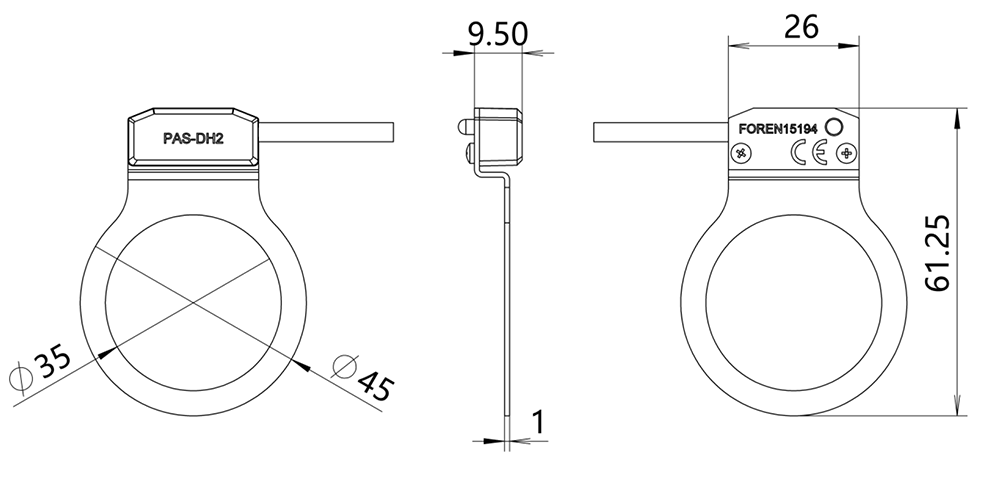

| Appearance and size |
| Installation Instructions |
