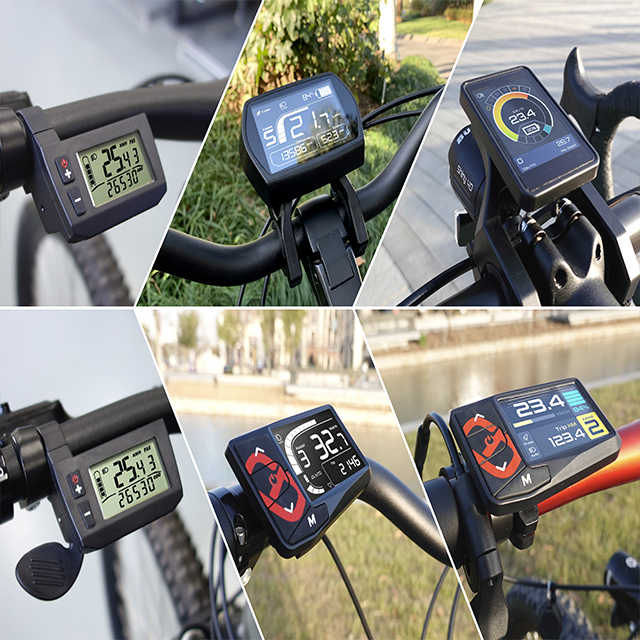

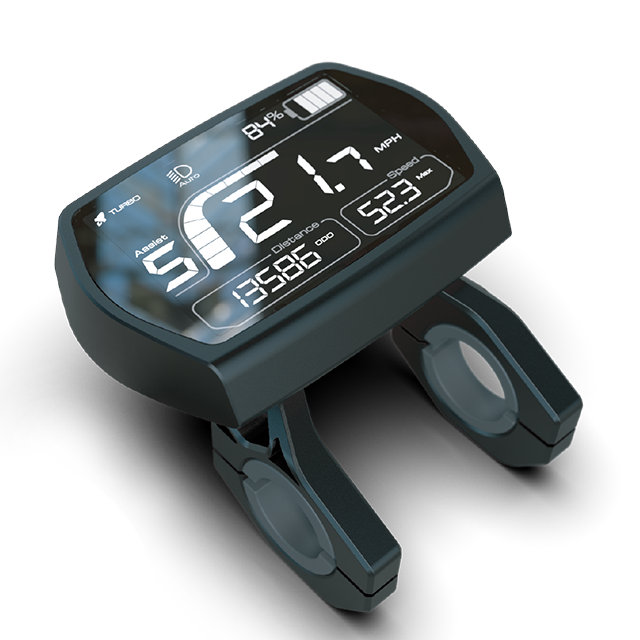

Ebike LCD Display 24V 36V 48V USB APP Bluetooth Waterproof Connector Electric Bicycle Accessories E-Bike color screen LED Display

Ebike LCD Display 24V 36V 48V USB APP Bluetooth Waterproof Connector Electric Bicycle Accessories E-Bike color screen LED Display

paragraph1

model

CDC1L

CDC1R

CDC1L-B

CDC1R-B

CDC6

CDC6-PRO

CDC11

CDC13

CDC13-C

CDC20

CDE6

CDE8

CDE5

Samples

≥1pcs

price

Depend on quantity

Quantity:

库存： 0

Inquire

Add to Basket

Product Description

Product Parameters

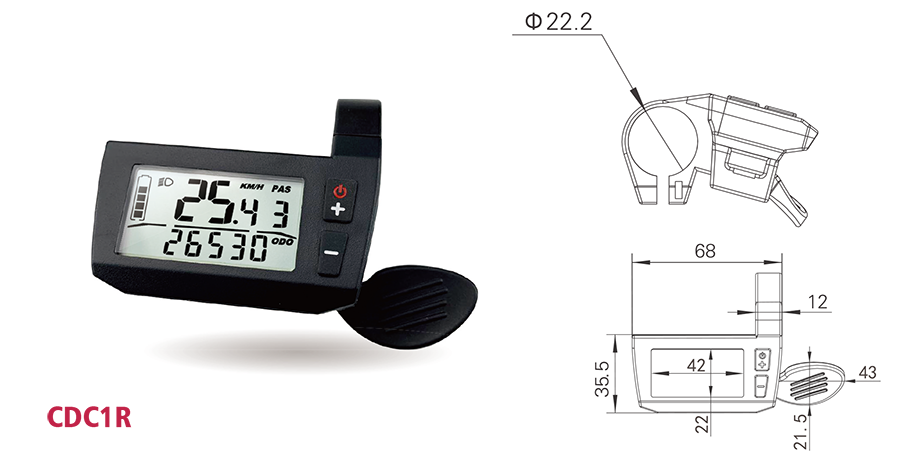

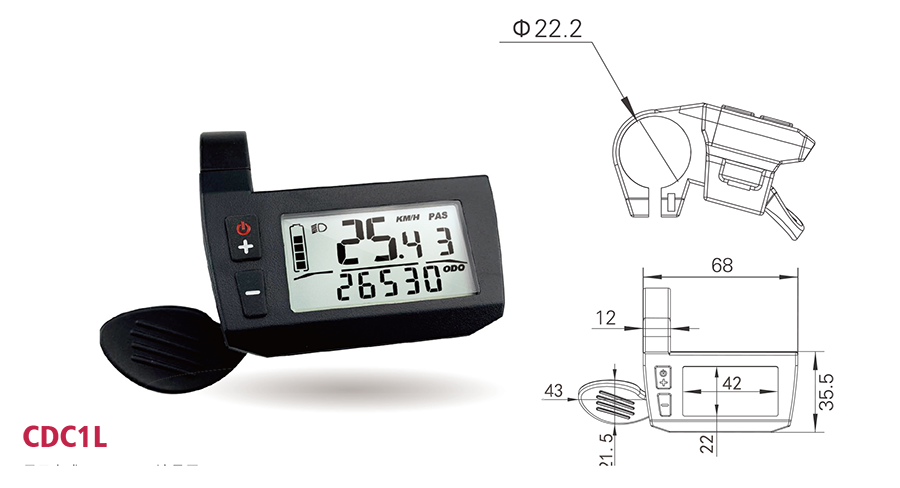

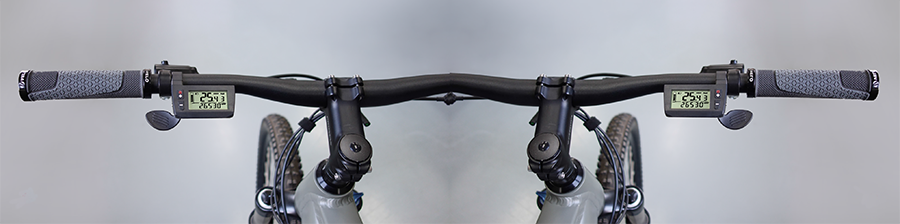

CDC1L/CDC1R

详情2

详情3

详情4

Display Method	LCD liquid crystal screen
Compatibility	24v/36v/48v Universal
Handlebar Diameter	22.2mm
Communication Method	UART/CAN
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Features	Boost/gear, speed display/single mileage, total mileage display/automatic error code display/backlight display/turn handle function/system startup/automatic sleep/password setting function (optional)/battery percentage display (optional) ) / USB charging function (optional)

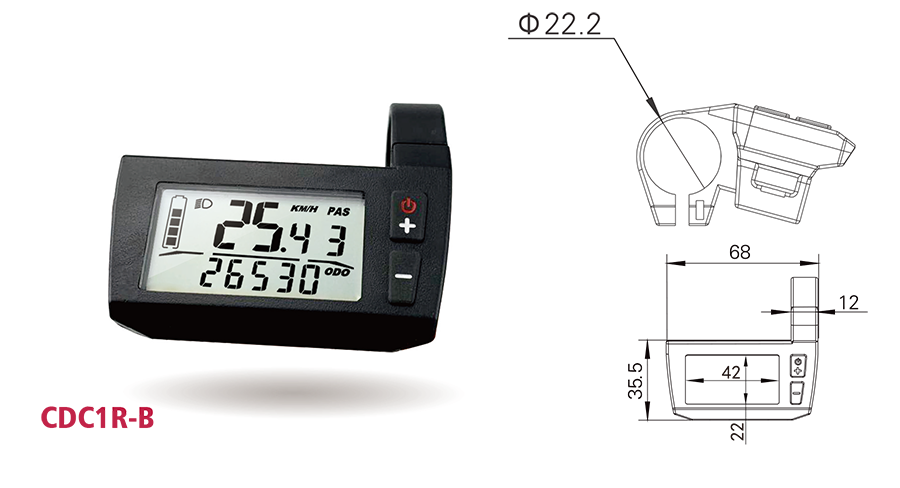

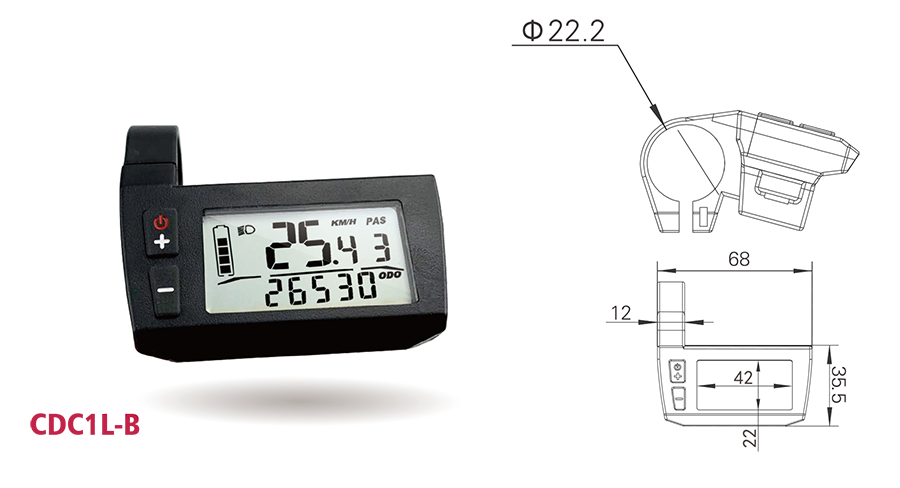

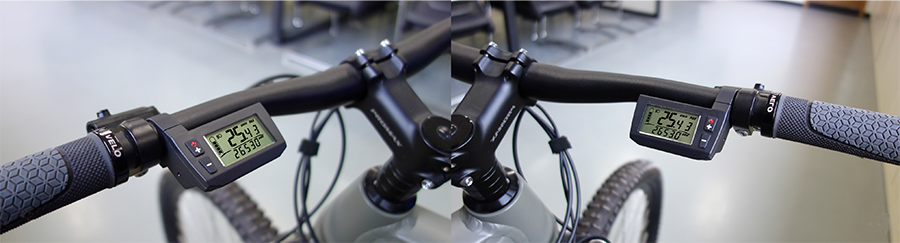

CDC1L-B/CDC1R-B

详情5 详情6 详情7

Display Method	LCD liquid crystal screen
Compatibility	24v/36v/48v Universal
Handlebar Diameter	22.2mm
Communication Method	UART/CAN
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Features	6km boost / gear, speed display / single mileage, total mileage display / automatic error code display / backlight display / system startup / automatic sleep / password setting function (optional) / battery percentage display (optional) / USB charging function (optional)

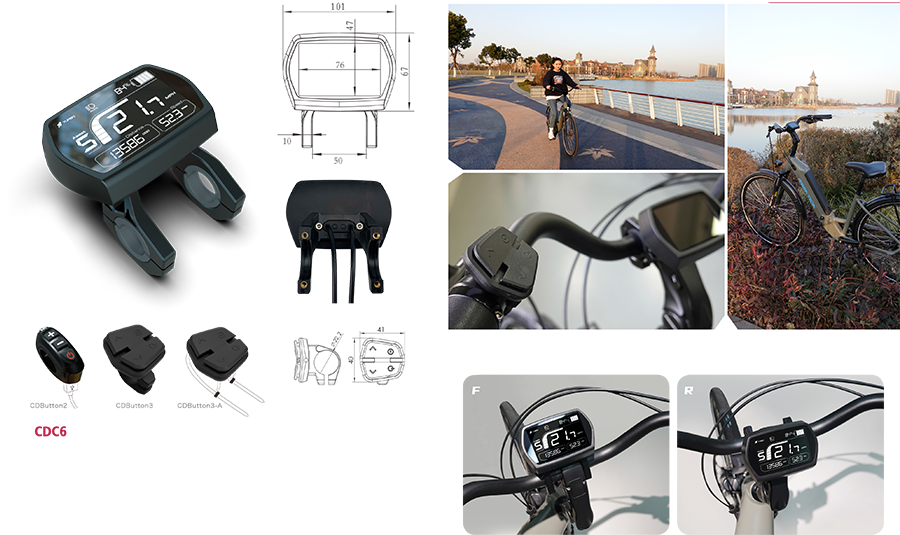

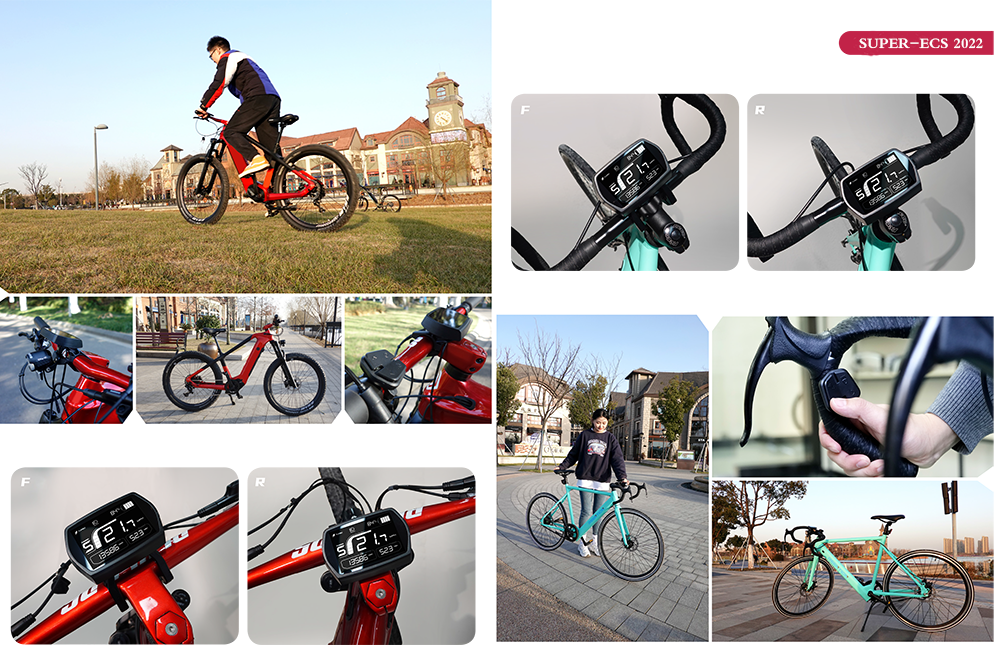

CDC6

详情8 详情9

Display Method	3.5 inch LCD screen (under strong light, the display is clearer)
Compatibility	24v/36v/48v Universal
Handlebar Diameter	22.2mm、25.4mm、31.8mm
Communication Method	UART/CAN
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Features	6km boost / gear position, speed display / single mileage, total mileage display / automatic error code display / backlight display / USB charging function / system startup / automatic sleep / password setting function (optional) / battery percentage display (optional) match)

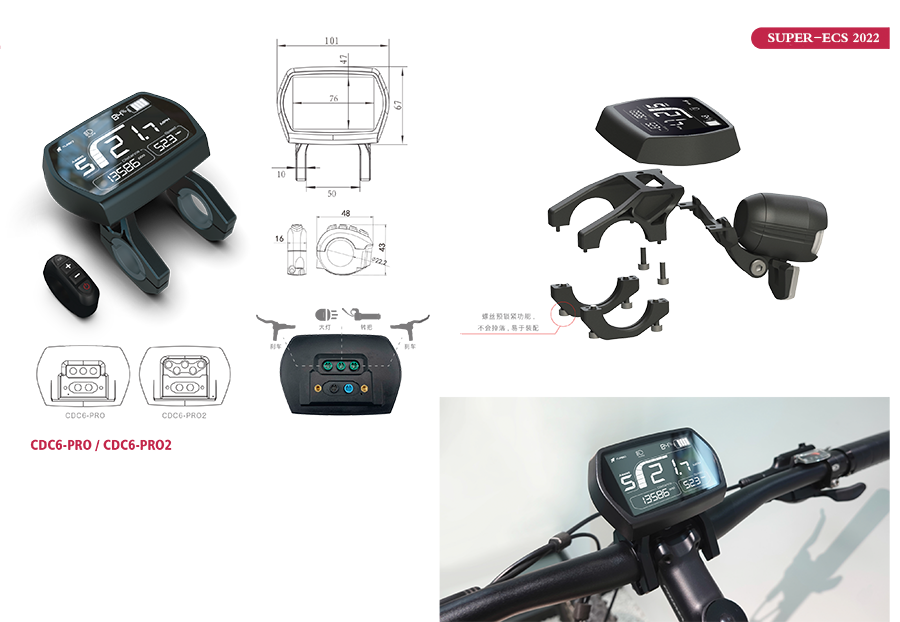

CDC6-PRO / CDC6-PRO2

详情10

Display Method	3.5 inch LCD screen (under strong light, the display is clearer)
Compatibility	24v/36v/48v Universal
Handlebar Diameter	22.2mm、25.4mm、31.8mm
Communication Method	UART/CAN
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Features	6km boost / gear position, speed display / single mileage, total mileage display / automatic error code display / backlight display / USB charging function / system startup / automatic sleep / password setting function (optional) / battery percentage display (optional) Equipped) / Rotating handle function (optional)

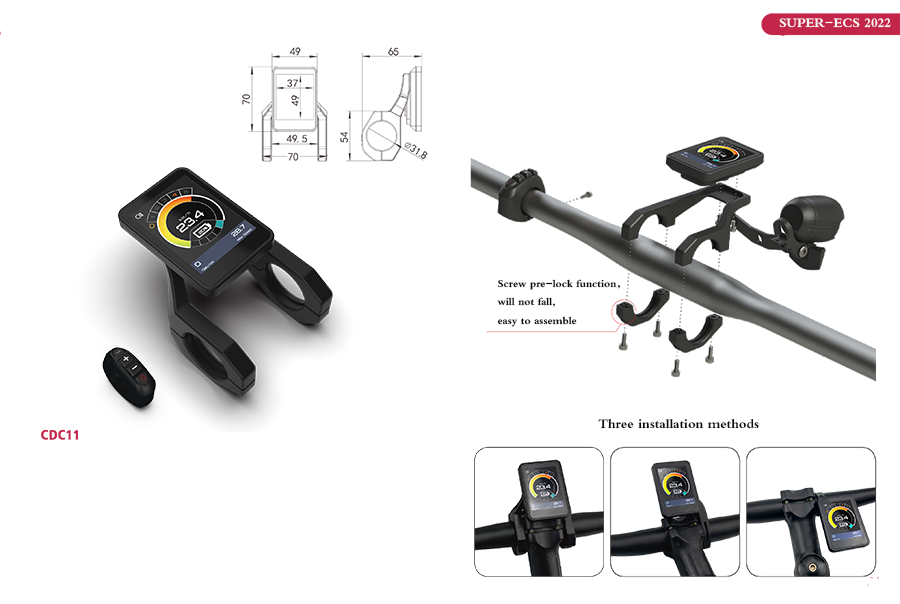

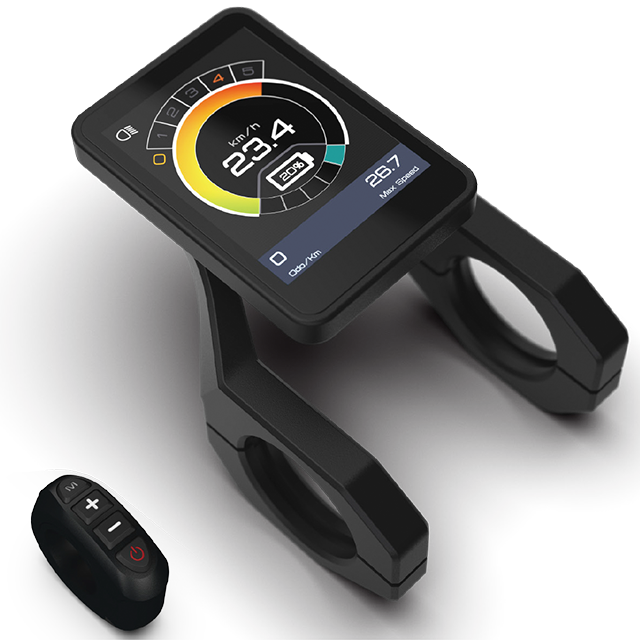

CDC11

Display Method	2.4 inch color screen
Compatibility	24v/36v/48v Universal
Handlebar Diameter	22.2mm、25.4mm、31.8mm
Communication Method	UART/CAN
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Features	6km boost/gear, speed display/single mileage, total mileage display/automatic error code display/backlight display/battery percentage display/USB charging function/light sensing function/system power on/automatic sleep/password setting function (optional match)

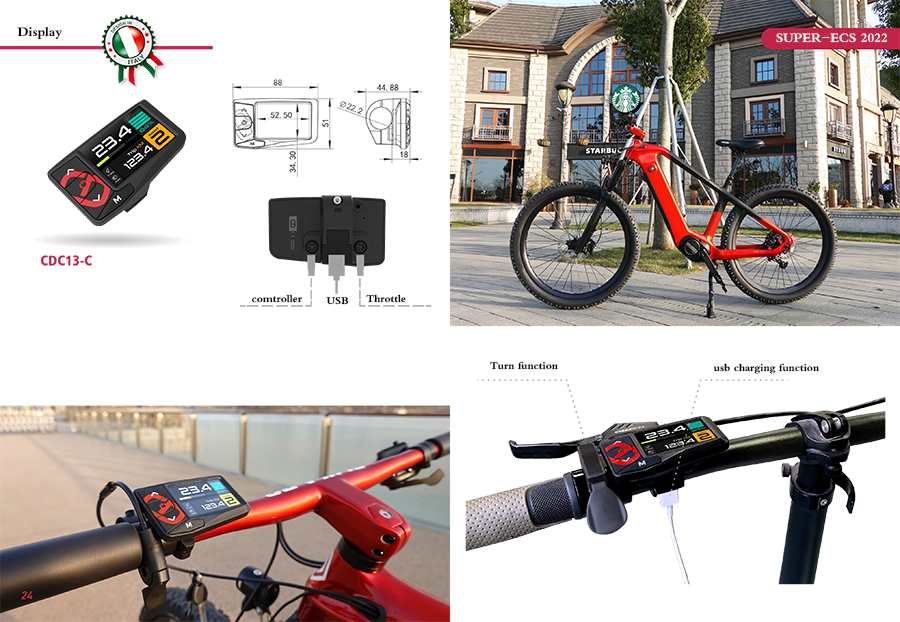

CDC13/CDC13C

详情12 详情13

Display Method	2.4 inch color screen
Compatibility	24v/36v/48v Universal
Handlebar Diameter	22.2mm
Communication Method	UART/CAN
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Features	6km boost / gear, speed display / single mileage, total mileage display / automatic error code display / backlight display / battery percentage display / light sensor function / USB charging function / System startup / Auto sleep / Handlebar function (optional) / Password setting function (optional)

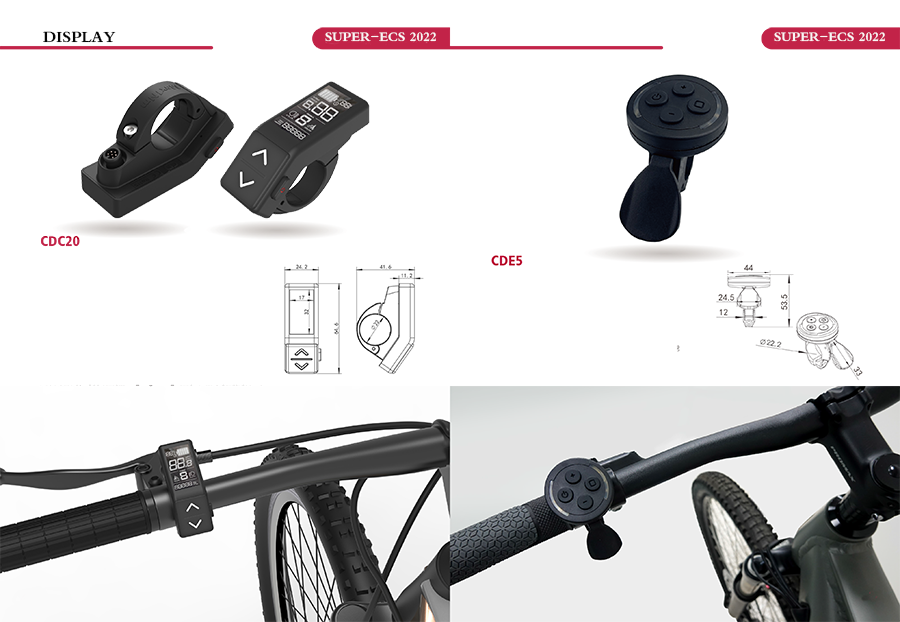

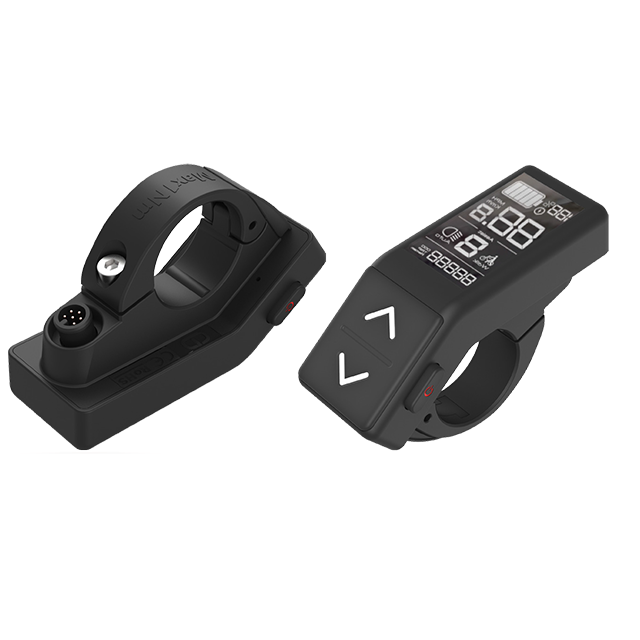

CDC20/CDE5

详情14

Display Method(CDC20)	1.4 inch LCD screen (under strong light, the display is clearer
Display Method(CDE5)	LED
Compatibility	24v/36v/48v Universal
Handlebar Diameter	22.2mm
Communication Method	UART/CAN
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Features(CDC20)	6km boost / gear, speed display / single mileage, total mileage display / automatic error code display / type-c charging function / system startup / automatic sleep / password setting function (optional) / battery percentage display (optional)
Features(CDE5)	6km boost / gear display / battery display / automatic error code display / handlebar function / system startup / automatic sleep

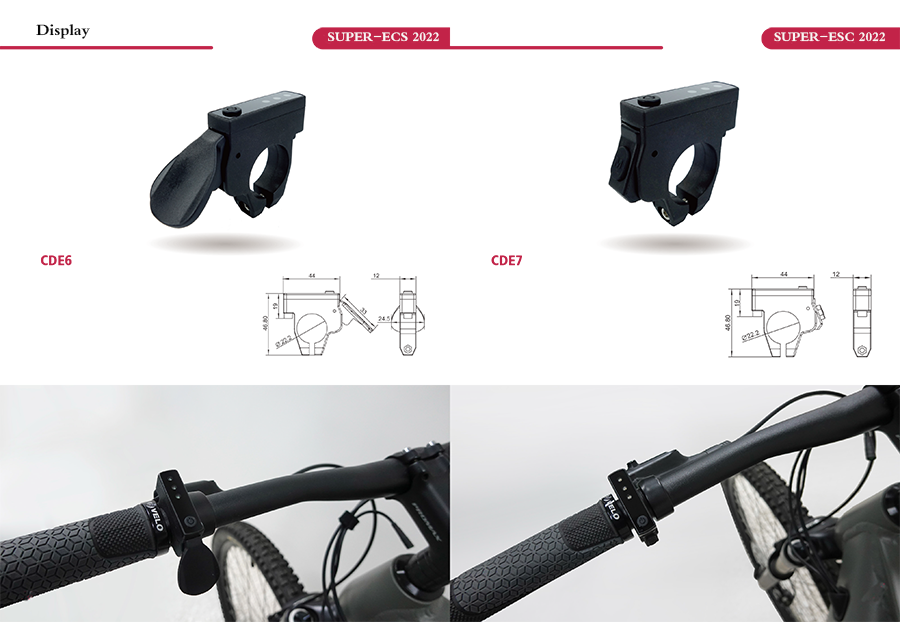

CDE6/CDE7

Display Method	LED
Compatibility	Input voltage 5v
Handlebar Diameter	22.2mm
Communication Method	UART
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Features(CDE6)	6km boost / gear display / battery display / automatic error code display / handlebar function / system startup / automatic sleep
Features(CDE7)	6km boost / gear display / battery display / automatic error code display / system startup / automatic sleep

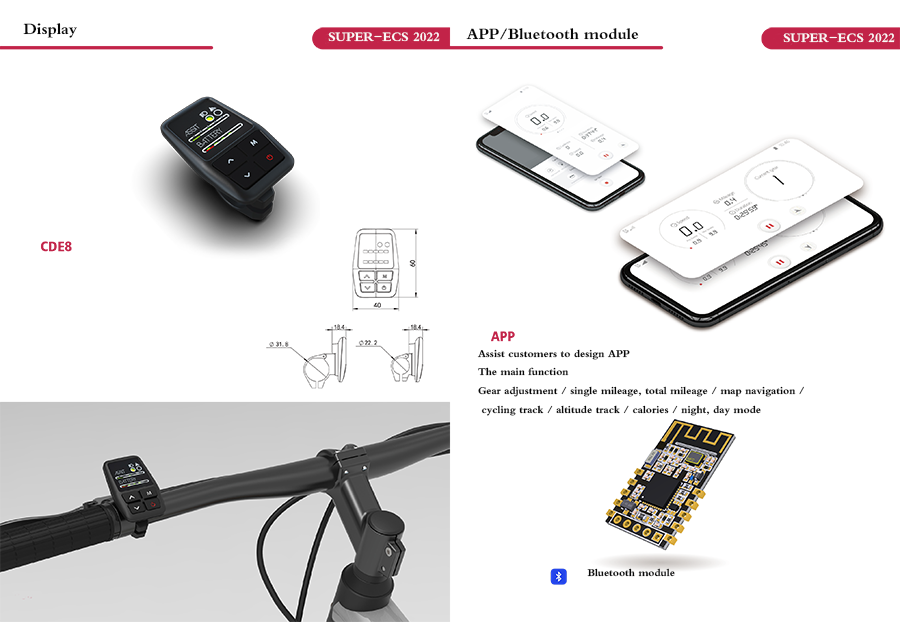

CDE8

Display Method	LED
Compatibility	24v/36v/48v Universal
Handlebar Diameter	22.2mm、31.8mm
Communication Method	UART
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Features	6km boost / gear display / battery display / automatic error code display / system startup / automatic sleep / handlebar function (optional)

Tips：Assist customers to design APP
The main function：Gear adjustment / single mileage, total mileage / map navigation / cycling track / altitude track / calories / night, day mode
