| 202100603-250W ebike kits | ||
| Item | Name | Detail |
| 1 | Motor | 36v250w brushless gear front motor，whith hall sensor and speed sensor,9pins waterproof,cable length 250mm,fork size 100mm,match 27.5inch bike,the max speed is 32km/h |
| 2 | Controller | 36v12a 6Mosfets sine wave controller,the functions as drawing |
| 3 | LCD | UKC3 left model LCD color display. |
| 4 | PAS | 12 magnets pedal assistance sensor,double hall sensor,cable length 350mm |
| 5 | Brake lever | electric brake lever,cable length 250mm |
| 6 | Throttle | thumb throttle,cable length 250mm |
| 7 | Front light | WUXING QD193-2 model front lighting，36V cable length 250mm |
| 8 | Battery | 36V10.4Ah,BMS 20Adown tube model battey 36V10.4Ah,4P10S,BMS 20a |
| 9 | Charger | 42V=2A，American Standard |
| 10 | Wheel | 27.5inch*2.25 silver color double aluminium alloy rim |
| 11 | Spokes | 36PCS silver stainless steel spokes for one wheel,with long copper cap |

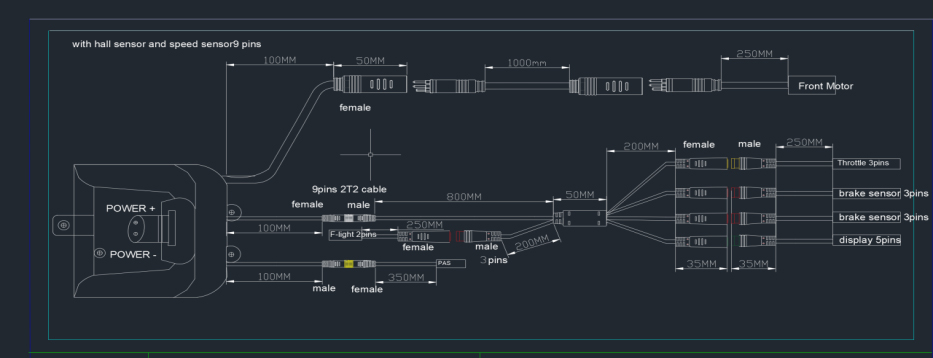

| 12 | 2T4 | 2T4 cable,length and function as the drawing |
| 13 | Motor transfer cable | 1.2sq model motor transfer cable,one size is female another side is male,cable length 1000mm |
| 14 | Tyre | 27.5inch*2.25 model tyre,tap length 48MM |
| 15 | Assambly fee | assambly wheel and tyre |
| 16 | Cartons | 27.5inch corrugated case carton szie 90*70*28cm |
| 17 | 260mm*宽100mm*180mm kits carton used for packing kits | |
| 18 | Motor foam | each kits 2pcs foam used for protecting motor |
| 19 | Wheel foam | each kits 4pcs foam used for protecting wheel |
