Home Ebike Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Ebike 500w Rear Hub Motor low step 20" Fat Tyre electric bicycle Folding city e-bike for women
Model:FT-014 1.500W bafang hub motor 2.Disc brake for front&rear wheel 3.48V 13AH lithium battery 4.LCD Display 5.Derailleurs: 7 speed shimano gear shift 6.Cool design 7.PAS and Throttle
paragraph1

Color

Optional

Samples

≥1pcs

price

Depend on the configuration
Quantity:
库存: 0
Inquire
Add to Basket


PRODUCT DESCRIPTION
FrameAluminum alloy frame
Motor500W hub motor
Battery48V 13AH lithium battery
DisplayLCD display
LightLED light for front & rear battery light
Tire20"*4.0 KENDA Tire
Brake disc brake for both
Front forkHydraulic suspension fork
Derailleurs7 speed shimano gear shift


Max speed25km-32km/H
Driving modePAS&Throttle
Driving distanceApprox 45-70km per charging
Loading capacity120kgs
Packing size160*27*85m
N.W./G.W.35KGS/40KGS


Container loads:90pcs/20'GP; 220pcs/40'HQ

1      2   3   4

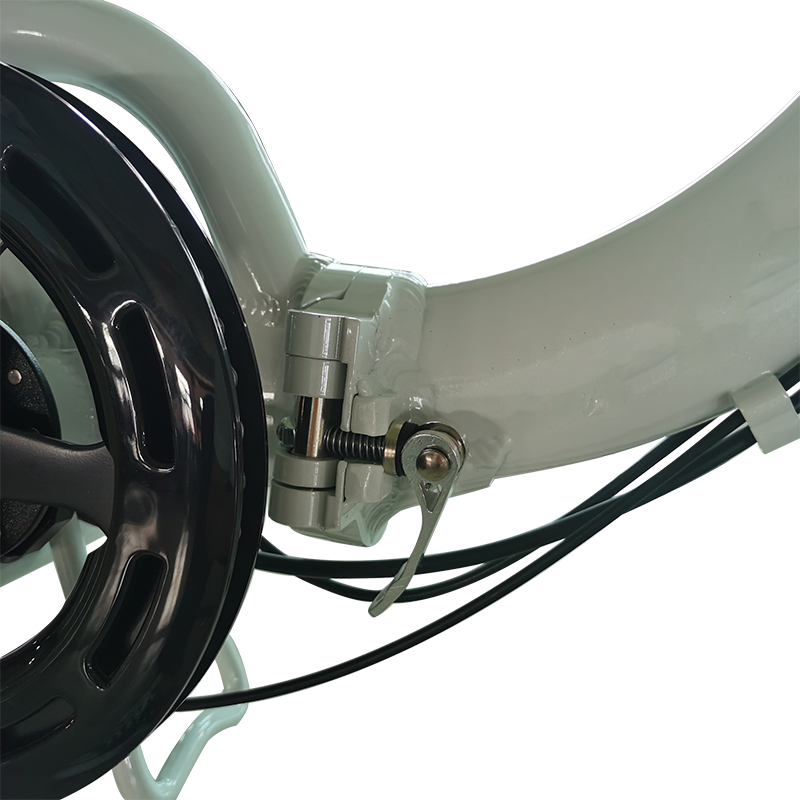

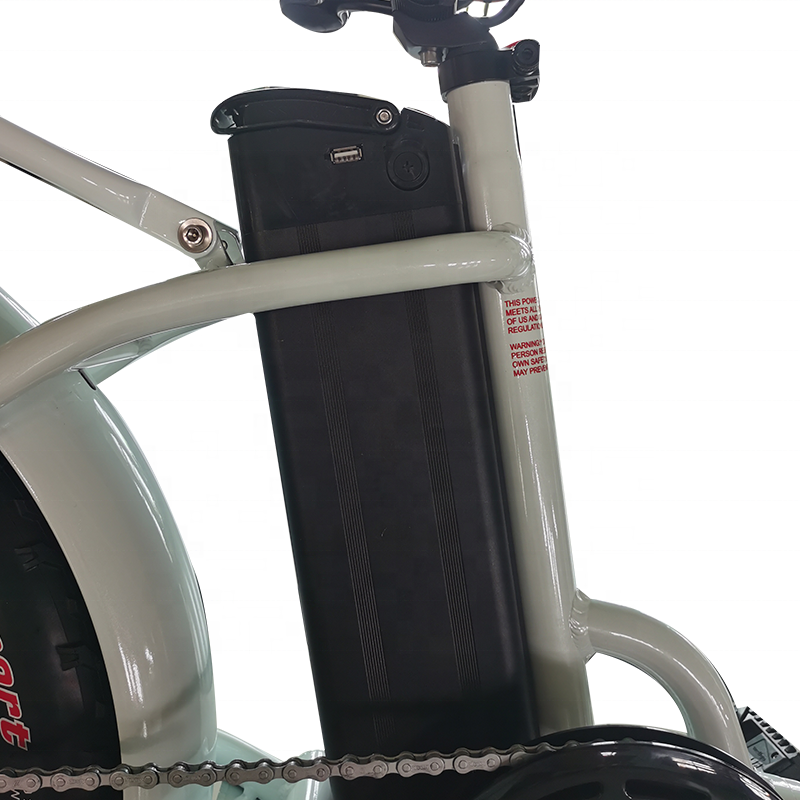

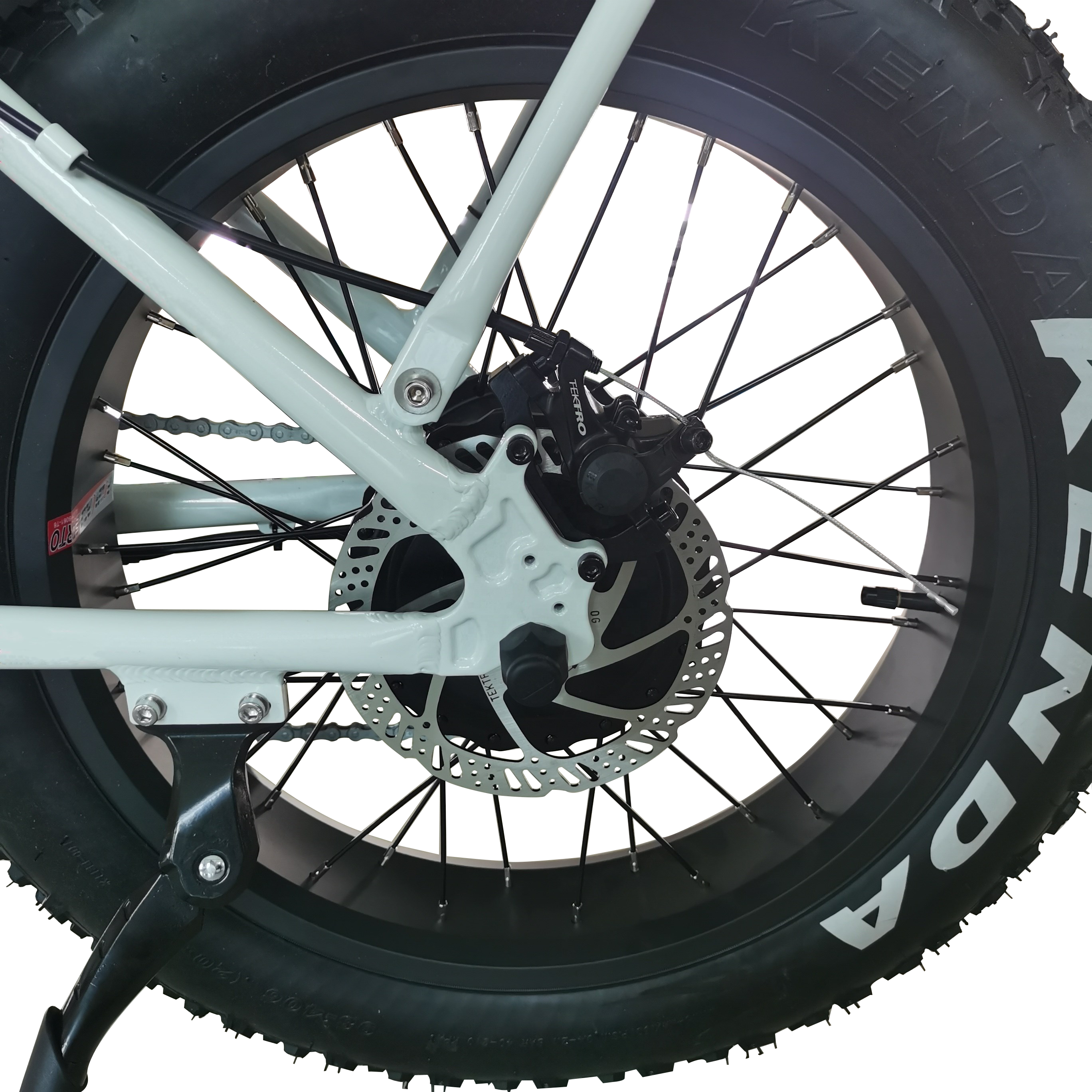

Folding electric bike makes it portable   rear disc brake makes your journey   48V 13AH lithium removable battery    MOZO Aluminum all hydraulic                                      more safety                                                                                                     suspension


5    6

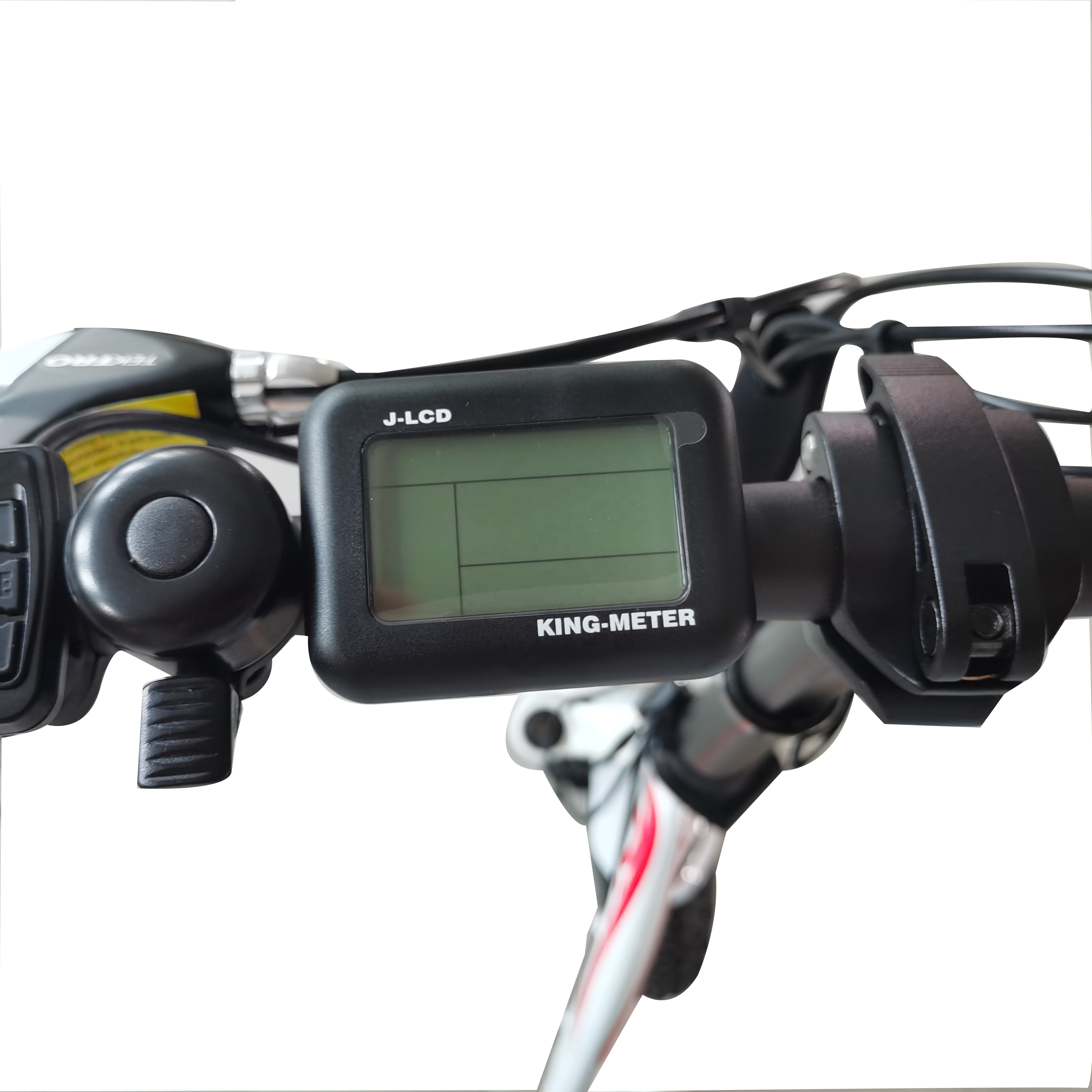

LCD display shows its speed, battery   Semi-Automatic PET Bottle Blowing

                 and mileage                         Machine Bottle Making Machine Bottle

                                                              Moulding Machine PET Bottle Making

                                                                    Machine is suitable for

                                                              producing PET plastic containers and

                                                                     bottles in all shapes.

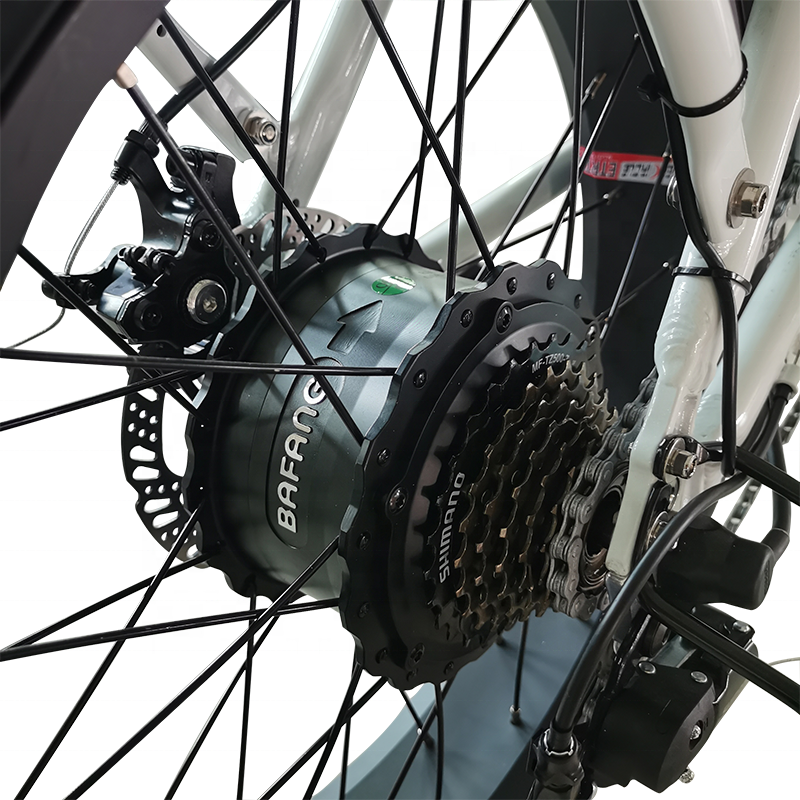

BAFANG'S hub motor - POWERFUL & LIGHT



      6

Motor is your most valuable commodity in an ebike .

Big and powerful is easy but small, lightweight, and powerful is a gigantic feat.



  • Bafang's newest and most innovative motor system

  • Tiny form factor

  • Over 95NM of torque

  • 28 to 1 gear reduction

  • Torque sensor




NEWLY IMPROVED SILENT GEAR

peekgearv2

The motor comes with our v2 silent gear made of peek plastic as a standard option. (normally $300 add on).  This gear is wider (for more contact area)  than previous gears and made from even stronger composite peek material to last longer than the original peek gears lasted.  This gear also makes the bike super quiet unlike the original bafang steel gear which is about 2x as loud.


BATTERY PACK

SUPER-ECS has been known for years as an ebike industry leader in ebikes. Without a good powerful light weight battery the rest of the bike will be landfill.  This bike utilizes a battery pack which has been integrated into the downtube, yet is easily removable as needed allowing for quick changes.   The battery also has its own power switch and usb charging port, allowing you to remove the pack and safely charge your battery in a more convenient location than the bike may be stored in.


CUSTOMER SUPPORT

  • 2 years on the Electronic control system

  • 1 year on the battery

  • 6 months on the other components
