Rated Power: 250W
Installation Widths (mm/OLD) : 75mm
Max Torque(N.m) : 30
Bike Recommendation : E-ROAD
Product description: Our 85SX Series e-bike front hub motor is one of the best electric bike motors on the market.The features are lightweight,only 1.6 kg, Max torque 30N.m , efficiency 80%.
Installation Widths (mm/OLD) : 75mm
Max Torque(N.m) : 30
Bike Recommendation : E-ROAD
Product description: Our 85SX Series e-bike front hub motor is one of the best electric bike motors on the market.The features are lightweight,only 1.6 kg, Max torque 30N.m , efficiency 80%.
paragraph1
Color
Black / Silver
Samples
≥1pcs
price
Depend on quantity
Quantity:
库存： 0
Inquire
Add to Basket
| Product parameters |

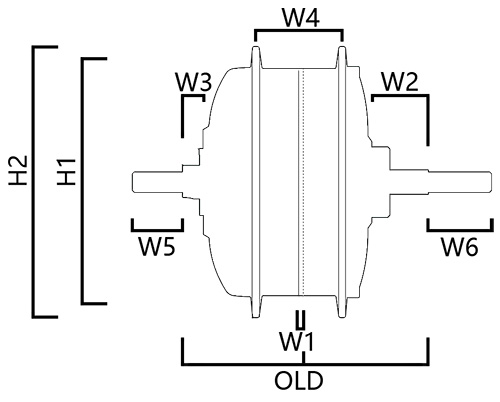

| Bike Recommendation | E-ROAD | Size : H1 / H2 | 109mm / 120mm |
| W1 / W2 | 0mm / 6.7mm | W3 / W4 | 6.7mm / 38mm |
| W5 / W6 | 14mm / 11mm | Installation Widths (mm/OLD) | 75mm |
| Rated Power | 250W | Rated Voltage(DCV) | 24V/36V |
| Wheel Size(Inch) | 16"~20" | Max Torque(N.m) | 30 |
| Efficiency(%) | ≥80 | Weight (kg) | 1.6 |
| Speed(km) | 25 | Noise Grade (dB) | ＜55 |
| Operating Temperature | -20℃~45℃ | Cabling Route | Optional |
| Spoke Parameter | 36H*13G (Optional) | Line Way | Left |
| IP Level | 65 | Certification | CE/RoHS/EN 15194 |
