| Product parameters |
| Bike Recommendation | E-TOUR/E-MTB/E-CARGO | Efficiency(%) | ≥80 |

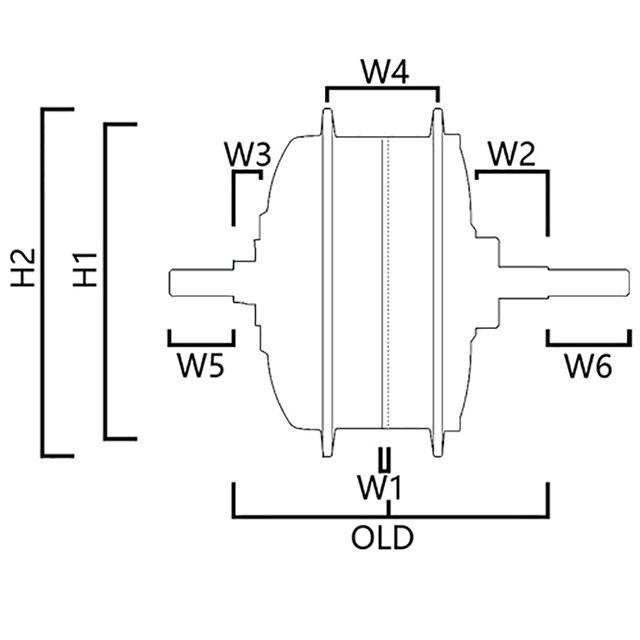

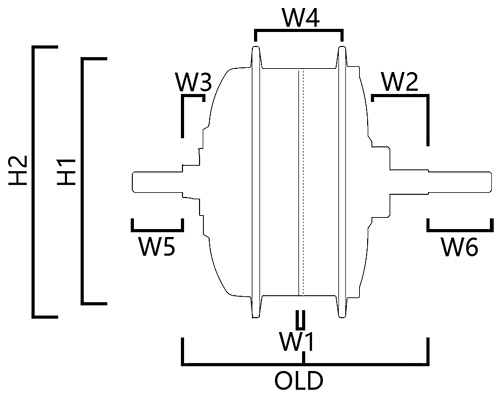

| Size : H1 / H2 | 151mm / 166mm | Weight (kg) | 4 |
| W1 / W2 | 5.5mm / 38.5mm | Speed(km) | 35/40/45 |
| W3 / W4 | 15.5mm / 43mm | Noise Grade (dB) | ＜55 |
| W5 / W6 | 26mm / 32mm | Operating Temperature | -20℃~45℃ |
| Installation Widths (mm/OLD) | 135mm/138mm | Cabling Route | Optional |
| Rated Power | 500W | Spoke Parameter | 36H*13G (Optional) |
| Rated Voltage(DCV) | 36V/48V | Line Way | Right |
| Wheel Size(Inch) | 20"~29" | IP Level | 65 |
| Max Torque(N.m) | 65 | Certification | CE/RoHS/EN 15194 |
