Battery connectors

paragraph1

Samples

≥1

price

Depend on quantity

Quantity:

库存： 0

Inquire

Add to Basket

Product Description

Electrical Characteristics

Rated Voltage	48V AC/DC
Rated Current	10A
Withstand Voltage	700VDC
Contact Resistance	<10mΩ
Insulation Resistance	>20MΩ

Mechanical Characteristics

Durability	1000 Cycles
Mating and unmating force	20N ~ 50N

Environmental Characteristics

Operating Temperature	-25 ℃ ~ 80℃
IP Rating	N/A

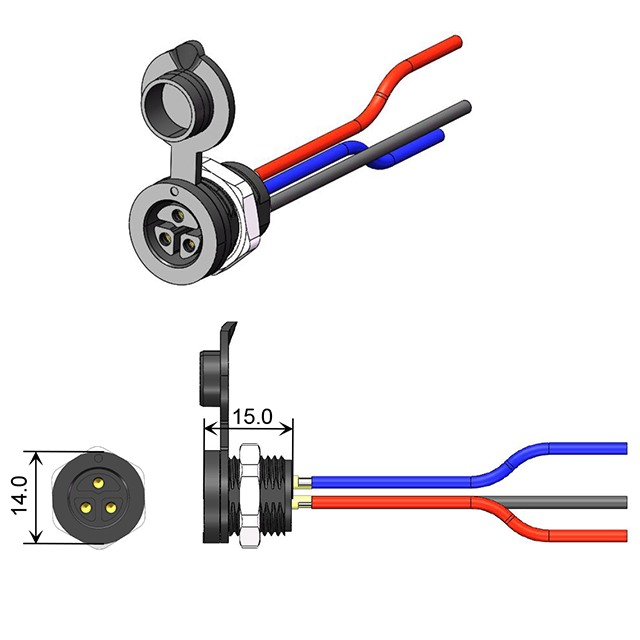

Product Specification

Product Size	ᴓ10.8mm
Mating Length	44.0mm
Terminal	Gold-plated Copper
Wire Specification	0.5mm²/0.75mm²/1.0mm²
