Rated Power: 250W/ 350W/ 500W
Pedal Sensor : Torque/ Torque and Torque Integrated
Shaft Standard : JIS
Bike Recommendation : E-TOUR / E-MTB/ CARGO
Pedal Sensor : Torque/ Torque and Torque Integrated
Shaft Standard : JIS
Bike Recommendation : E-TOUR / E-MTB/ CARGO
paragraph1
Color
BLACK
Samples
≥1pcs
price
Depend on quantity
Quantity:
库存： 0
Inquire
Add to Basket
| Product parameters |
| Bike Recommendation | E-TOUR/E-MTB/E-CARGO | n0(Rpm) | 96/102/104 |

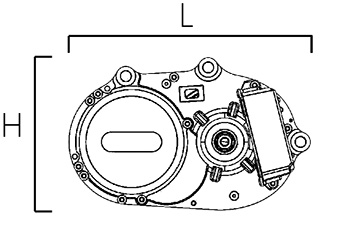

| Size (L x W x H) | 225x 157 x 139mm | Power Assist Ratio | 36%~300% |

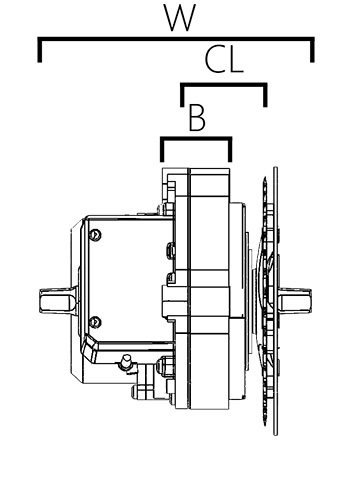

| (CL/B) | 48.8mm/39mm | Pedal Sensor | Speed and Torque Integrated or Speed |
| Rated Power | 250W/350W/500W | Shaft Standard | JIS |
| Efficiency(%) | ≥80 | Noise Grade (dB) | ＜55 |
| Reduction Ratio | 33.6 | Throttle | Optional |
| Wheel Size(Inch) | 20"~28" | E-Brake | Yes |
| Rated Voltage(DCV) | 36V/48V | Light Drive Capacity(DCV/W) | 6/2 |
| Max Torque(N.m) | 90/110/120 | IP Level / Salt Spray Test | 65/96 |
| Weight(kg) | 3.6 | Certification | CE/RoHS/EN 15194 |
