60V AC/DC 35A Charger & discharger battery connectors
60V AC/DC 35A Charger & discharger battery connectors
60V AC/DC 35A Charger & discharger battery connectors
60V AC/DC 35A Charger & discharger battery connectors
paragraph1

Samples

≥1

price

Depend on quantity
Quantity:
库存: 0
Inquire
Add to Basket
Electrical Characteristics
Rated Voltage60V AC/DC
Rated Current35A
Withstand Voltage700VDC
Contact Resistance

<10mΩ

Insulation Resistance>20MΩ
Mechanical Characteristics
Durability1000 Cycles
Mating and unmating forceScrew locking
Environmental Characteristics
Operating Temperature-25 ℃ ~ 80℃
IP RatingIP67

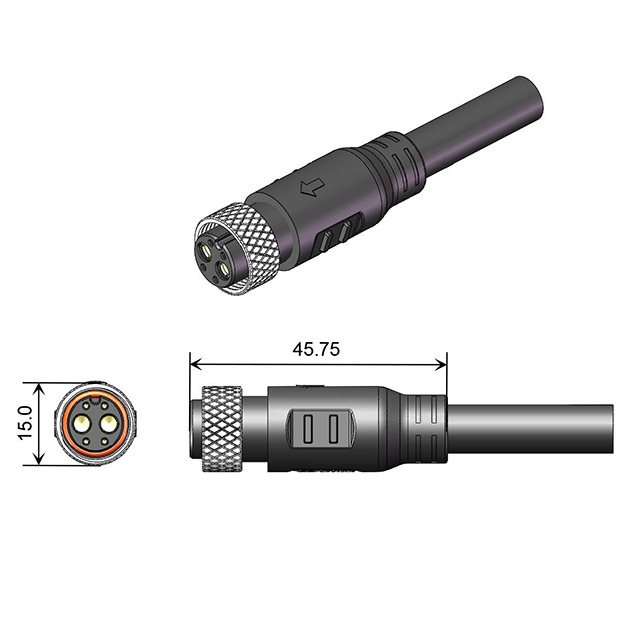

Product Specification
Product Sizeᴓ15.0mm
Mating Length77.9mm
TerminalGold-plated Copper
Wire Specification4.0mm²/0.2mm²
