60V AC/DC 30A Charger & discharger battery connectors

paragraph1

Samples

≥1

price

Depend on quantity

Quantity:

库存： 0

Inquire

Add to Basket

Product Description

Electrical Characteristics

Rated Voltage	60V AC/DC
Rated Current	30A
Withstand Voltage	700VDC
Contact Resistance	<10mΩ
Insulation Resistance	>20MΩ

Mechanical Characteristics

Durability	1000 Cycles
Mating and unmating force	30N ~ 80N

Environmental Characteristics

Operating Temperature	-25 ℃ ~ 80℃
IP Rating	N/A

Product Specification

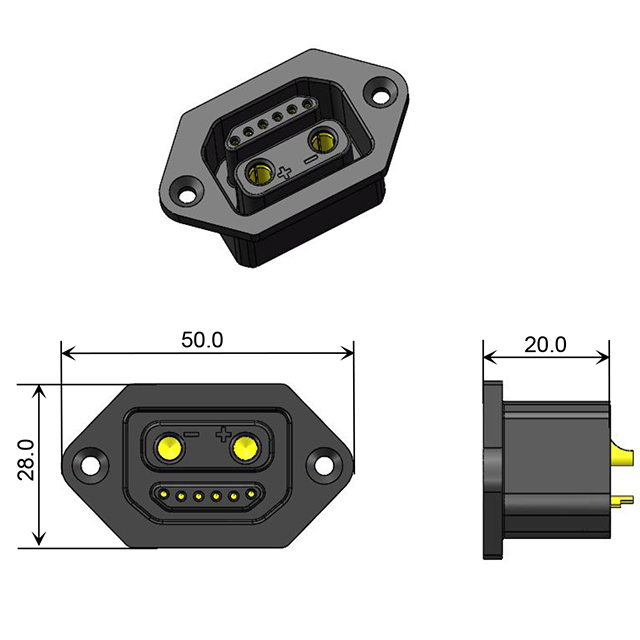

Product Size	50mm Max
Mating Length	41.3mm
Terminal	Silver-plated Copper
Wire Specification	2.0mm²/2.5mm²/0.2mm²
