0.2mm² 10pin 12pin motor connectors

paragraph1

Pins

10pin

12pin

Samples

≥1

price

Depend on quantity

Quantity:

库存： 0

Inquire

Add to Basket

Product Description

Electrical Characteristics

Rated Voltage	60V AC/DC
Rated Current	35A
Withstand Voltage	700VDC
Contact Resistance	<10mΩ
Insulation Resistance	>20MΩ

Mechanical Characteristics

Durability	200 Cycles
Mating and unmating force	Screw locking

Environmental Characteristics

Operating Temperature	-25 ℃ ~ 80℃
IP Rating	IP67

Product Specification

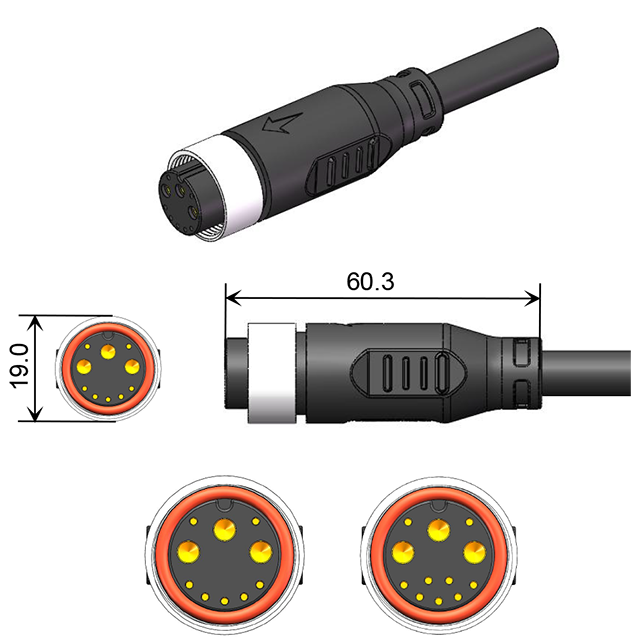

Product Size	ᴓ19.0mm
Mating Length	109.7mm
Terminal	Gold-plated Copper
Wire Specification	2.5/3.0/4.0mm²/0.2mm²
