0.2mm² motor connectors for ebike

paragraph1

Samples

≥1

price

Depend on quantity

Quantity:

库存： 0

Inquire

Add to Basket

Product Description

Electrical Characteristics

Rated Voltage	48V AC/DC
Rated Current	25A
Withstand Voltage	700VDC
Contact Resistance	<10mΩ
Insulation Resistance	>20MΩ

Mechanical Characteristics

Durability	200 Cycles
Mating and unmating force	50N ~ 100N

Environmental Characteristics

Operating Temperature	-25 ℃ ~ 80℃
IP Rating	IP66

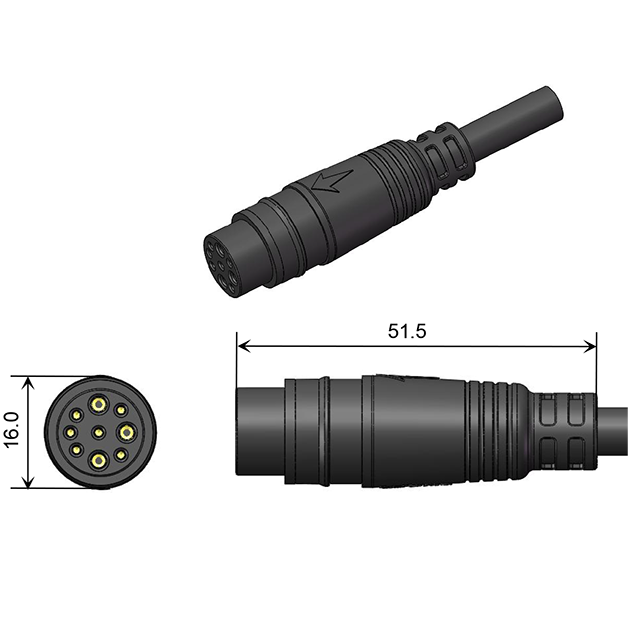

Product Specification

Product Size	ᴓ16.8mm
Mating Length	88.5mm
Terminal	Gold-plated Copper
Wire Specification	2.0/2.5mm²/0.2mm²
