48V AC/DC 20A Charger & discharger battery connectors

paragraph1

Samples

≥1

price

Depend on quantity

Quantity:

库存： 0

Inquire

Add to Basket

Product Description

Electrical Characteristics

Rated Voltage	48V AC/DC
Rated Current	20A
Withstand Voltage	700VDC
Contact Resistance	<10mΩ
Insulation Resistance	>20MΩ

Mechanical Characteristics

Durability	1000 Cycles
Mating and unmating force	Screw locking

Environmental Characteristics

Operating Temperature	-25 ℃ ~ 80℃
IP Rating	IP67

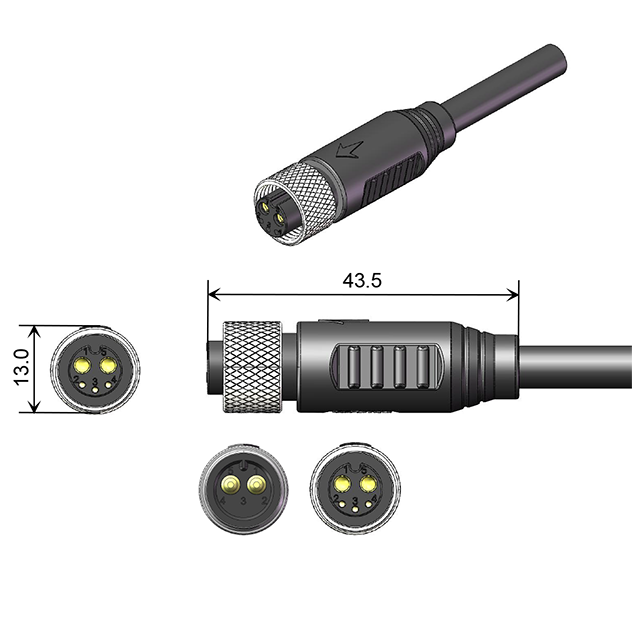

Product Specification

Product Size	ᴓ13.0mm
Mating Length	78.0mm
Terminal	Gold-plated Copper
Wire Specification	2.0mm²/0.2mm²
