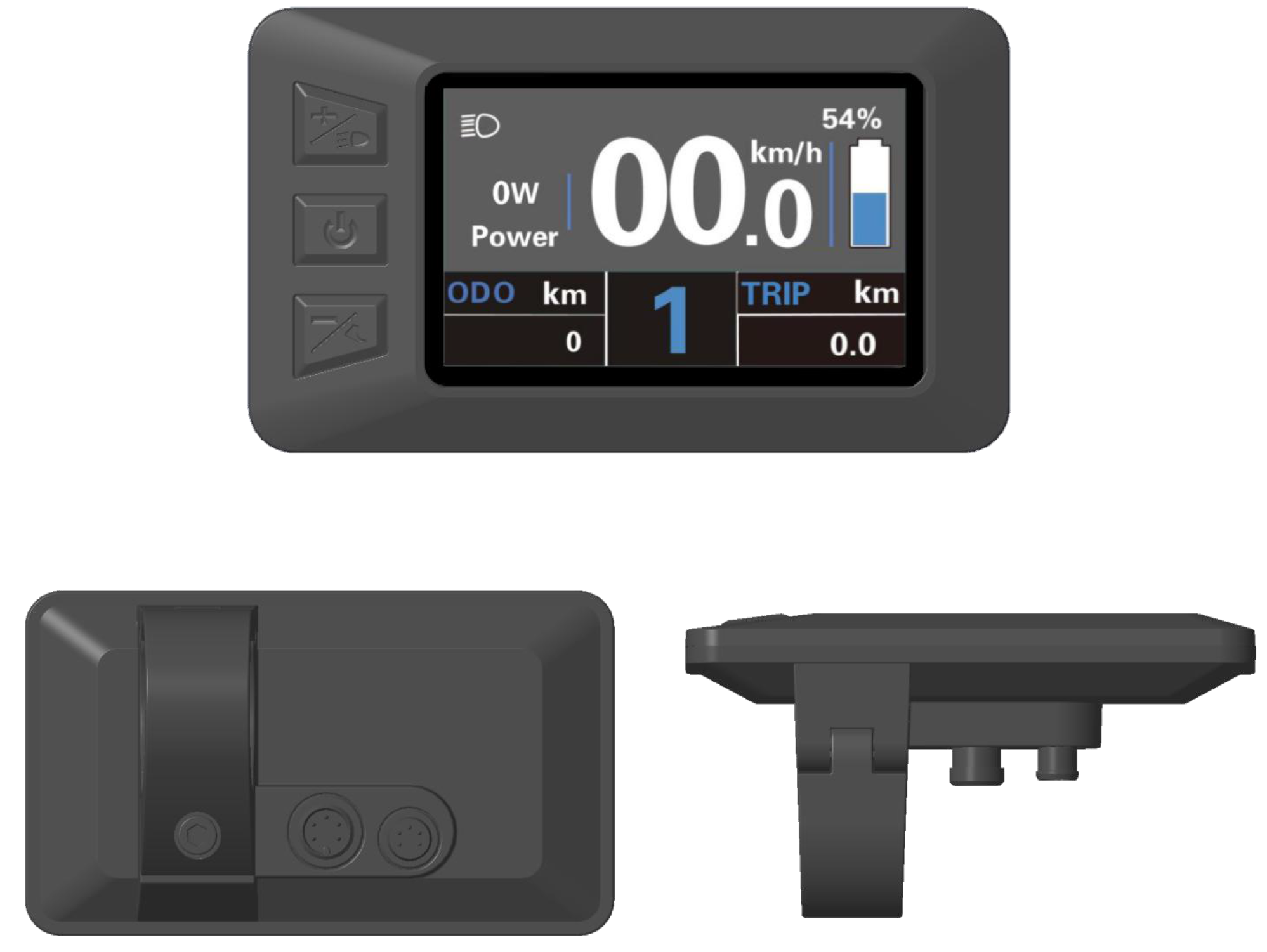

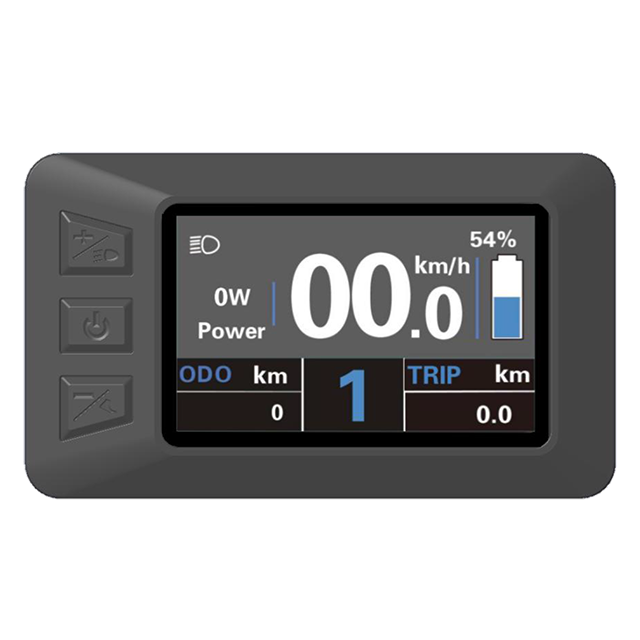

36v 48v TFT display with usb charging for ebike

• E-bike Intelligent TFT display;

• Model: KD286( without USB); KD286U( with USB).

• 36V/48V Power Supply;

• Rated working current :28mA;

• The maximum working current: 30mA;

• Off-state leakage current: <1μA;

• Operating temperature: -20℃~ 60℃;

• Storage temperature: -30℃~ 70℃

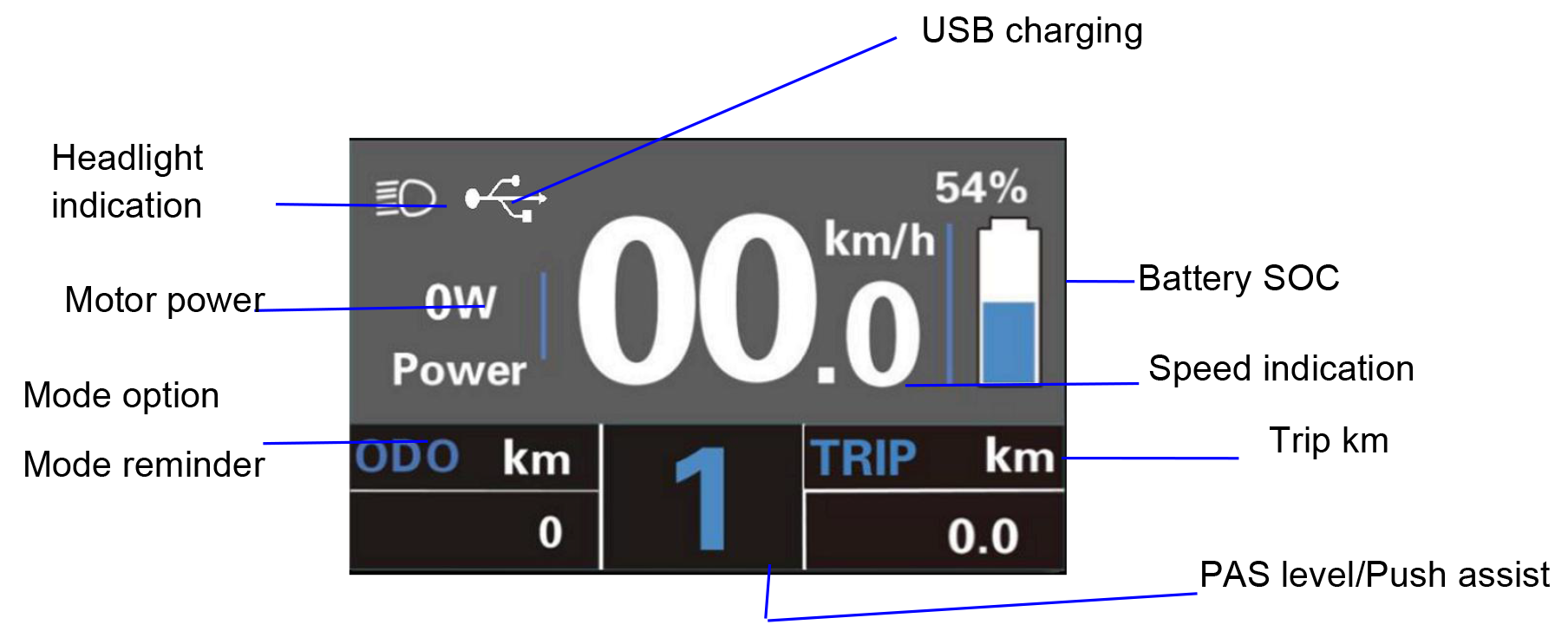

KD286 display has many functions to meet the user’s needs. The indicating contents are as follows:

• Smart battery SOC, real-time voltage or percentage, optional;

• USB charging port and indication icon;

• Intelligent indication of Trip, ODO, RT speed, Max. Speed, Avg Speed, Power and Trip time( Min);

• Assist level adjustment and indication;

• Backlight control and lighting indicator;

• The push-assist control and indication;

• Error code indication;

• Various Parameters Settings (e.g., trip clearance, backlight setting, Unit toggling wheel size, speed limit, battery power bar setting, assist level setting, power-on password enable, etc.)

• Factory Settings.
