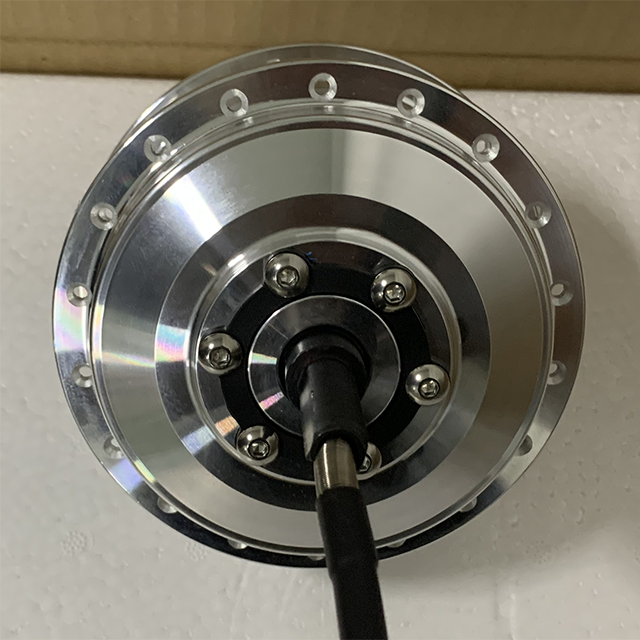

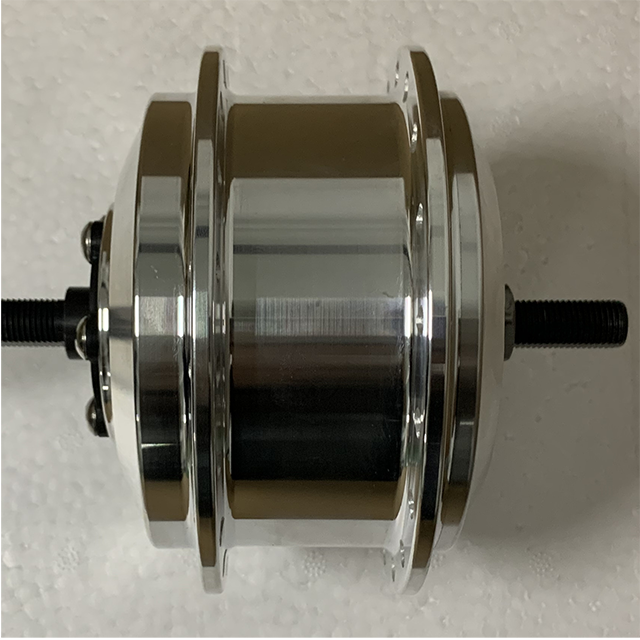

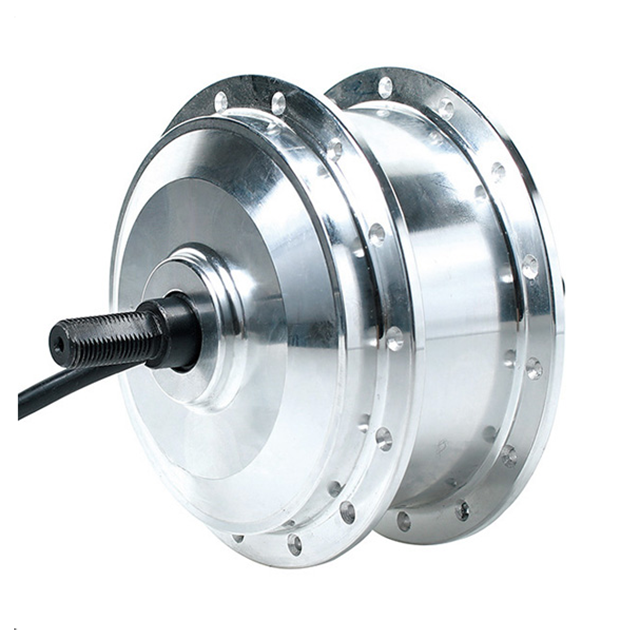

Product description: This is front hub motor, rated power 250W,
maximum torque 50N.m ,
suitable for 20 "~28" wheel diameter city bicycle
Certification:CE/RoHS/EN 15194
paragraph1
Color
Black
Silver
Samples
≥1pcs
price
Depend on quantity
Quantity:
库存： 0
Inquire
Add to Basket
| Product parameters |
| Bike Recommendation | E-CITY | Efficiency(%) | ≥80 |

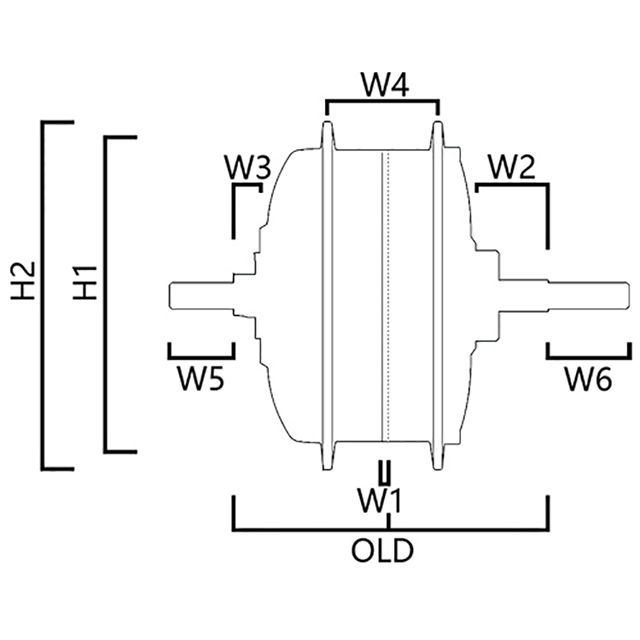

| Size : H1 / H2 | 109mm / 120mm | Weight (kg) | 2.0 |
| W1 / W2 | 4.7mm / 8.5mm | Speed(km) | 25 |
| W3 / W4 | 10.5mm / 42mm | Noise Grade (dB) | ＜55 |
| W5 / W6 | 25mm / 25mm | Operating Temperature | -20℃~45℃ |
| Installation Widths (mm/OLD) | 100mm | Color | Black / Silver |
| Rated Power | 250W | Cabling Route | Optional |
| Rated Voltage(DCV) | 24V/36V/48V | Spoke Parameter | 36H*13G (Optional) |
| Wheel Size(Inch) | 12"~28" | Line Way | Left |
| Max Torque(N.m) | 50 | IP Level | 65 |
