Rated Power: 250W
Installation Widths (mm/OLD) : 135mm
Max Torque(N.m) : 42
Bike Recommendation : E-ROAD
Installation Widths (mm/OLD) : 135mm
Max Torque(N.m) : 42
Bike Recommendation : E-ROAD
paragraph1
Color
Black / Silver
Samples
≥1pcs
price
Depend on quantity
Quantity:
库存： 0
Inquire
Add to Basket

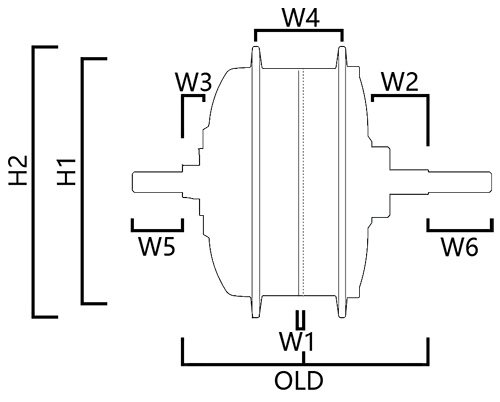

| Product parameters |
| Bike Recommendation | E-ROAD | Size : H1 / H2 | 109mm /120mm |
| W1 / W2 | 7.5mm / 42.3mm | W3 / W4 | 15.5mm / 42mm |
| W5 / W6 | 25mm / 25.5mm | Installation Widths (mm/OLD) | 135mm |
| Rated Power | 250W | Rated Voltage(DCV) | 24V/36V/48V |
| Wheel Size(Inch) | 16"~28" | Max Torque(N.m) | 42 |
| Efficiency(%) | ≥80 | Weight (kg) | 1.9 |
| Speed(km) | 25 | Noise Grade (dB) | ＜55 |
| Operating Temperature | -20℃~45℃ | Cabling Route | Optional |
| Spoke Parameter | 36H*13G (Optional) | Line Way | Left |
| IP Level | 65 | Certification | CE/RoHS/EN 15194 |
