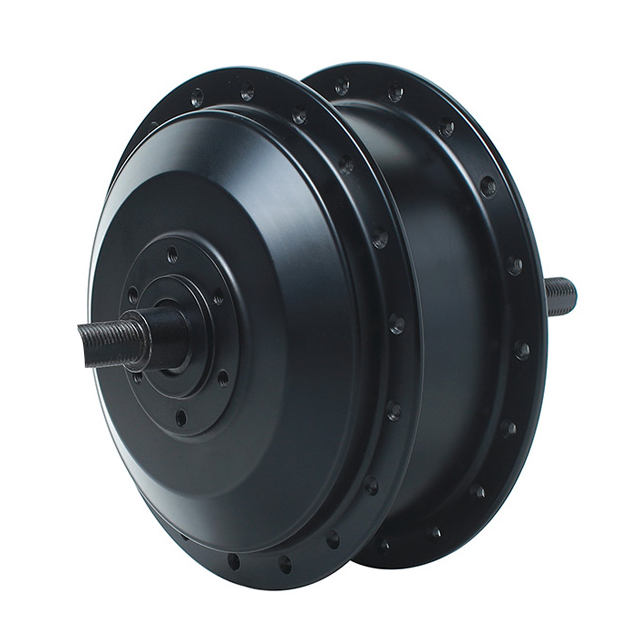

Product description:128SX front hub motor, for riding steep hills and loads to provide more adequate climbing power, rated power 250W/500W, maximum torque 60N.m, suitable for wheel size 20 "~28" urban travel bike
paragraph1
Color
Black
Silver
Samples
≥1pcs
price
Depend on quantity
Quantity:
库存： 0
Inquire
Add to Basket
| Product parameters |
| Bike Recommendation | E-TOUR/E-MTB | Efficiency(%) | ≥80 |

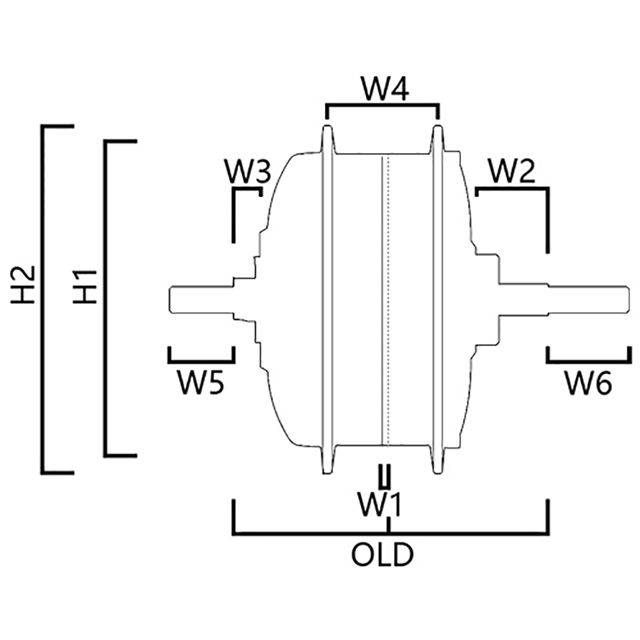

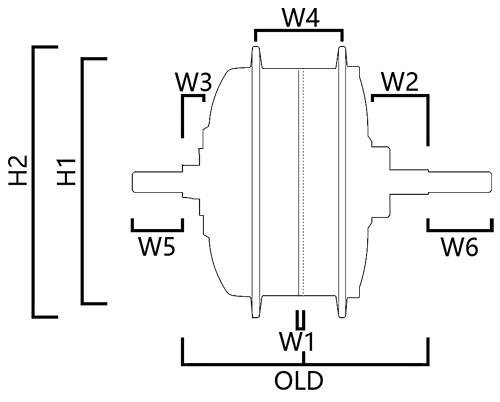

| Size : H1 / H2 | 129mm / 144mm | Weight (kg) | 2.8 |
| W1 / W2 | 6.2mm / 40.5mm | Speed(km) | 32/40 |
| W3 / W4 | 10.5mm / 44mm | Noise Grade (dB) | ＜55 |
| W5 / W6 | 28mm / 28mm | Operating Temperature | -20℃~45℃ |
| Installation Widths (mm/OLD) | 100mm | Cabling Route | Optional |
| Rated Power | 350W/500W | Spoke Parameter | 36H*13G (Optional) |
| Rated Voltage(DCV) | 36V/48V | Line Way | Left |
| Wheel Size(Inch) | 20"~28" | IP Level | 65 |
| Max Torque(N.m) | 60 | Certification | CE/RoHS/EN 15194 |
