paragraph1
Color
Black
Samples
≥1pcs
price
Depend on quantity
Power
1000W
1500W
Quantity:
库存： 0
Inquire
Add to Basket
| Product parameters |
| L*W*H(mm) | 233.1*144.5*129.1 | Noise Grade | ＜55dB |
| Rated Voltage | 48V | Color | black |
| Rated power | 1000W 1500W | Operating Temperature | -20℃-55℃ |
| Rated speed | 115±5 | Sensor | Torque sensor |
| n0 (Rpm) | 122±6 | E-Brake | optional |
| Max Torque | ≥200(N.M) | Speed sensor | optional |
| Efficiency | ≥80 | Light | DCV6V3W |
| Weight | 6.3Kg | Salt spray test | 96（h） |
| Toothed disc | 38T/42T/44T | waterproof level | IP65 |
| CL（mm） | 48 | Certification | EN15194/CE/ROHS |
| Product advantages |
Intelligent: The motor has high-sensitivity torque sensor and speed sensor, which can realize precise control of the whole vehicle, and the parameter setting of the upper computer maximizes the energy efficiency and achieves the effect of free control of the vehicle according to people's wishes;
Strong power: the motor can provide sufficient power performance, and the maximum torque can reach more than 200 N.m;
Modular: motor assembly, vector controller, torque sensor, one-piece connector.

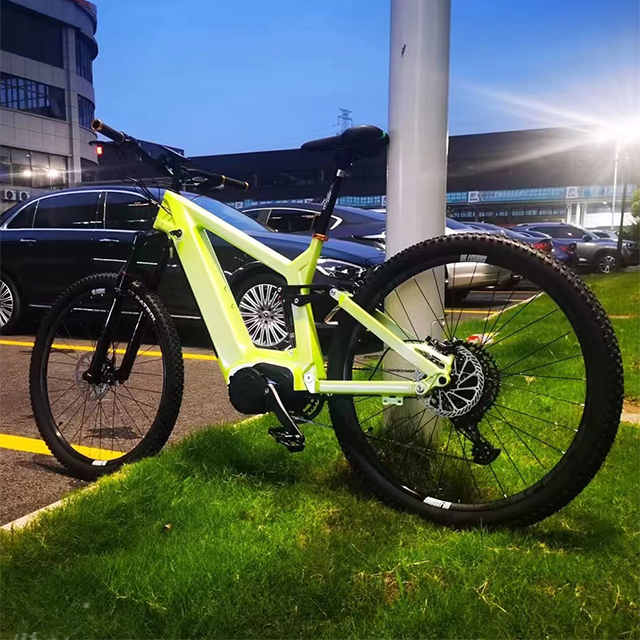

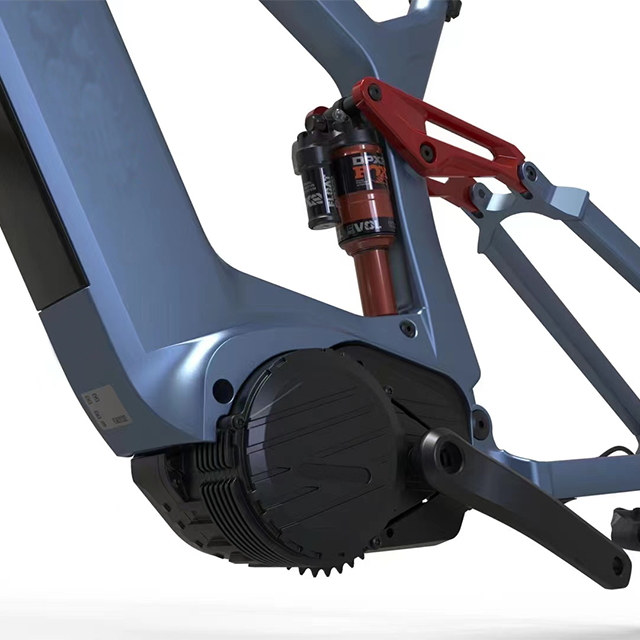

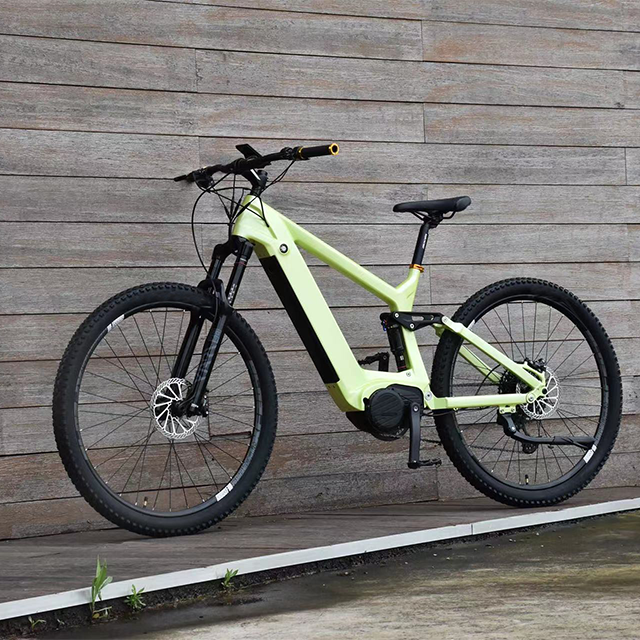

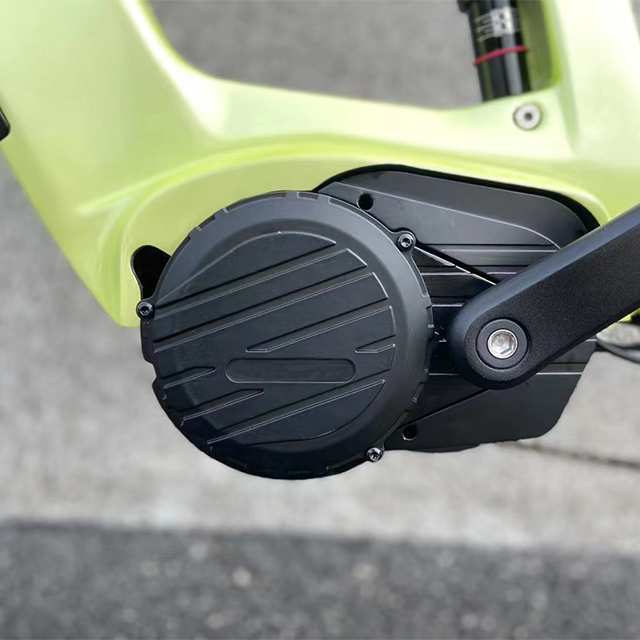

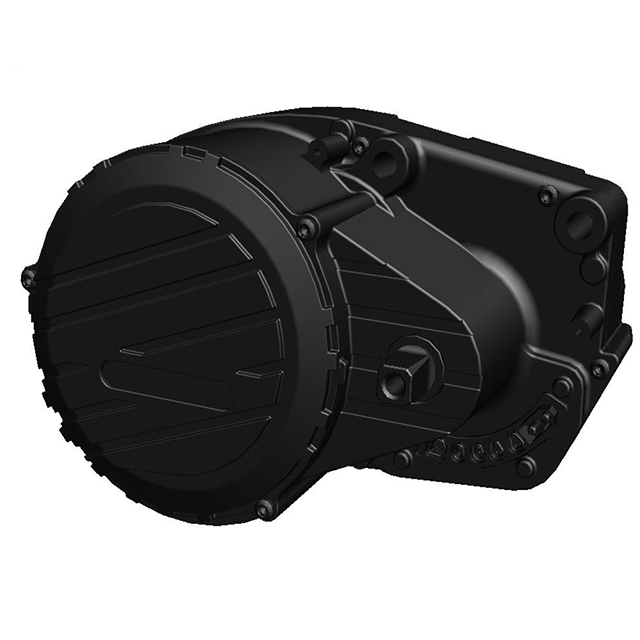

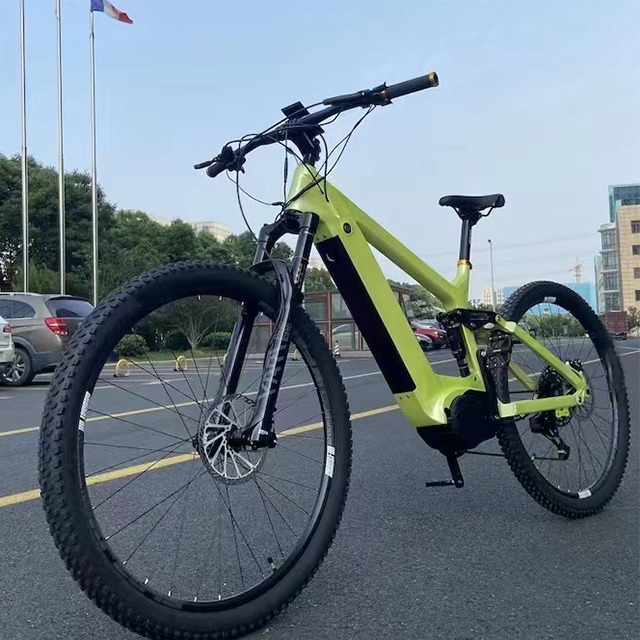

| Product Appearance |

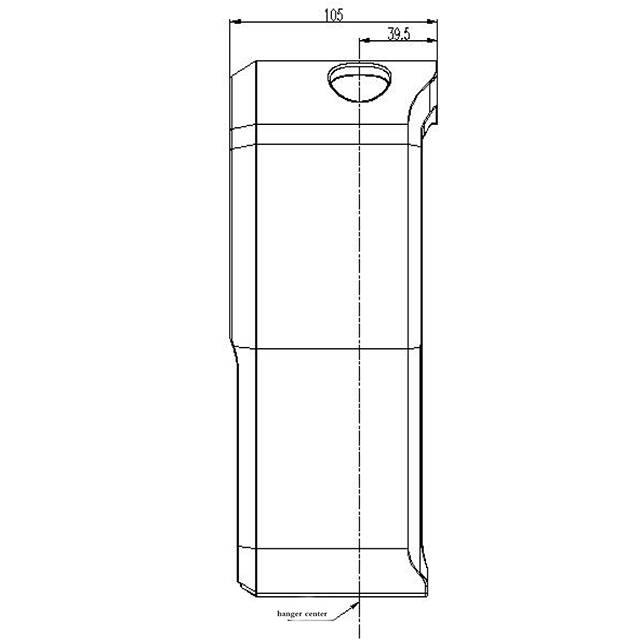

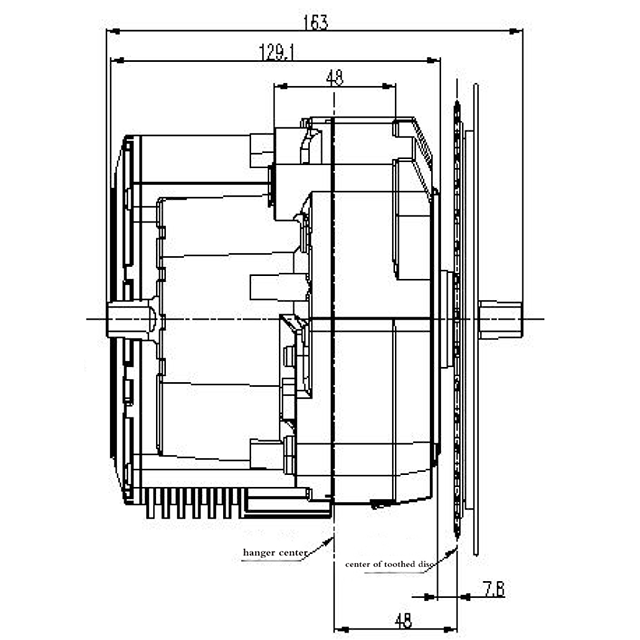

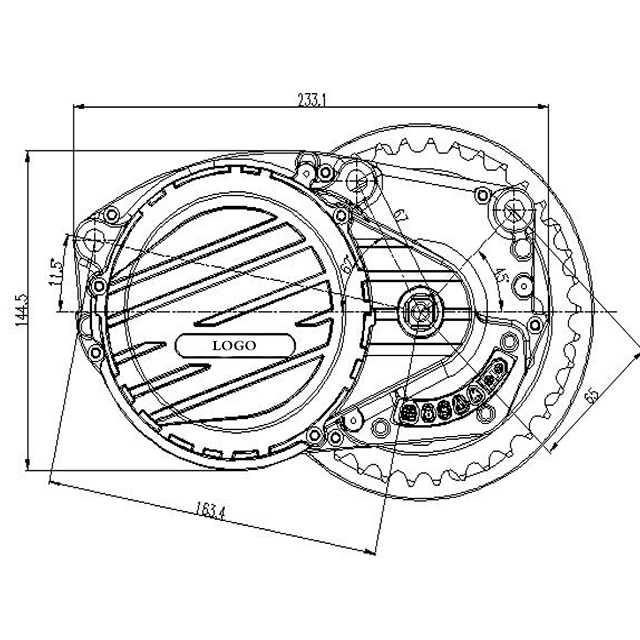

| Product Size |
