2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
2022 dual motors Fat tire electric bike 20 INCHES 7 Speed electric biycle 48v 500w 1000w Disc Brake E Bike
paragraph1

Color

Optional

Samples

≥1pcs

price

Depend on the configuration
Quantity:
库存: 0
Inquire
Add to Basket
PRODUCT DISPLAY

Hf726976ff1354d1da3e1706be359f90dr

PRODUCT FEATURES

1.500W Bafang dual motors(Front and Rear),

2.3 modes switchover button(front&Rear&both motor working)

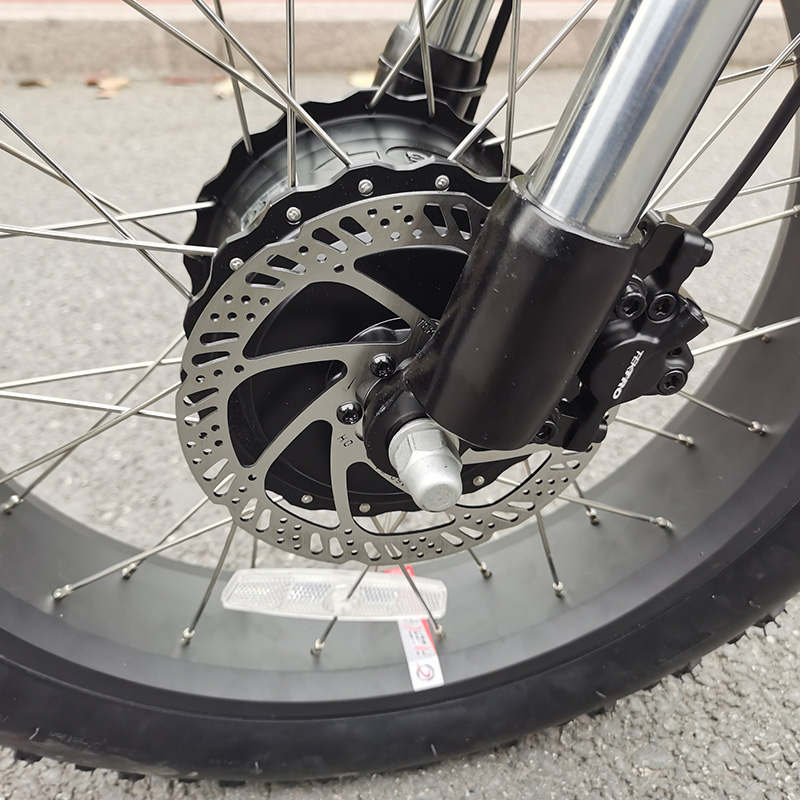

3.Shimano disc brake for front&rear wheel
4.48V 15AH lithium battery(samsung cells)
5.SW-LCD-U Screen(with USB port)
6.Dual controllers for front and rear motor

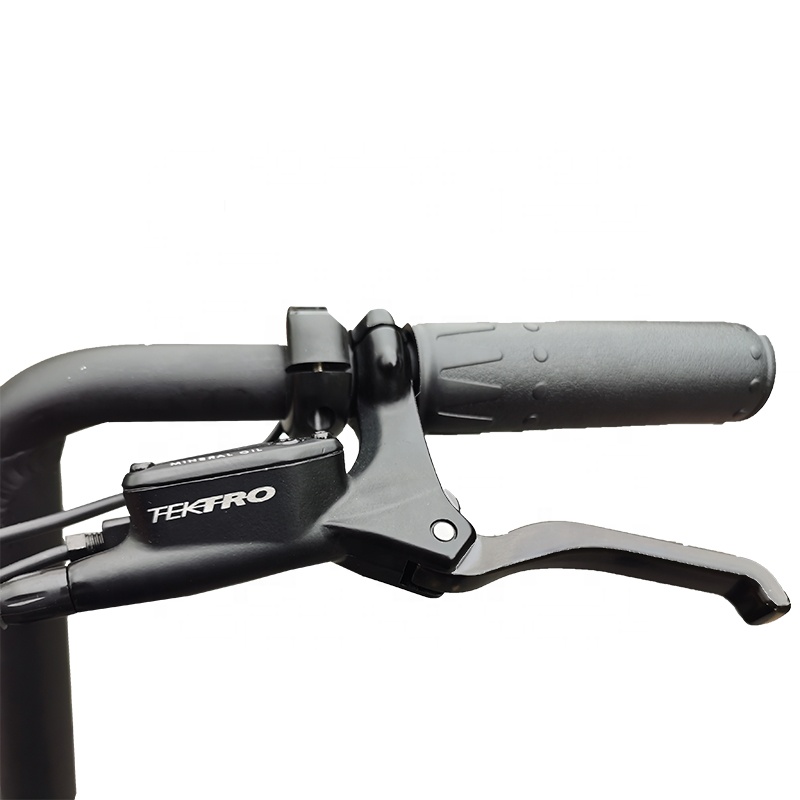

7.Brake:shimano disc brake for both
8.Derailleurs:seven speed shimano gear shift
9.Front fork:Hydraulic suspension

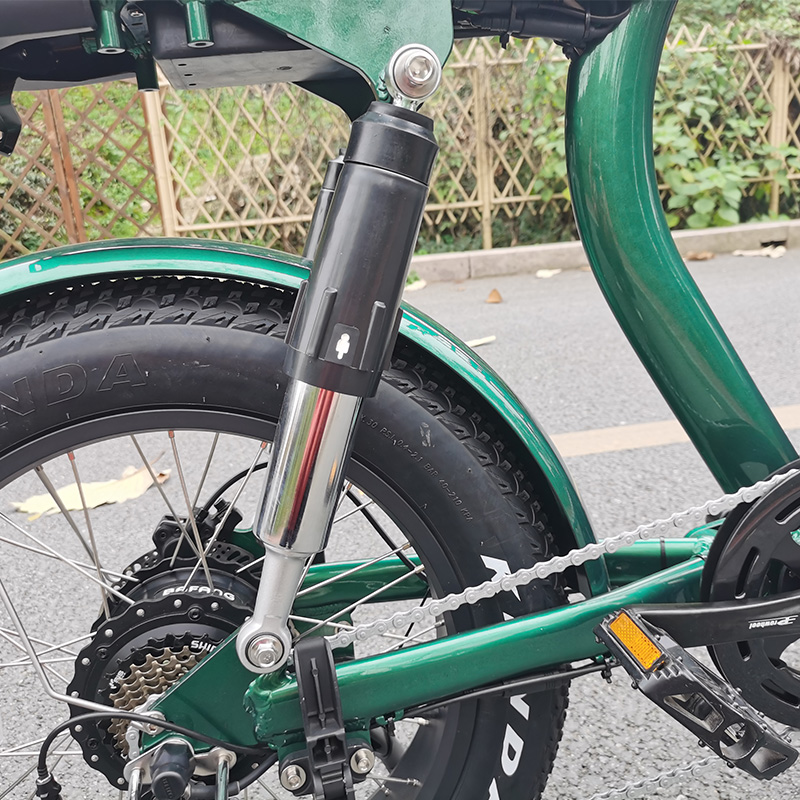

10.Rear supension:Hydraulic and spring suspension

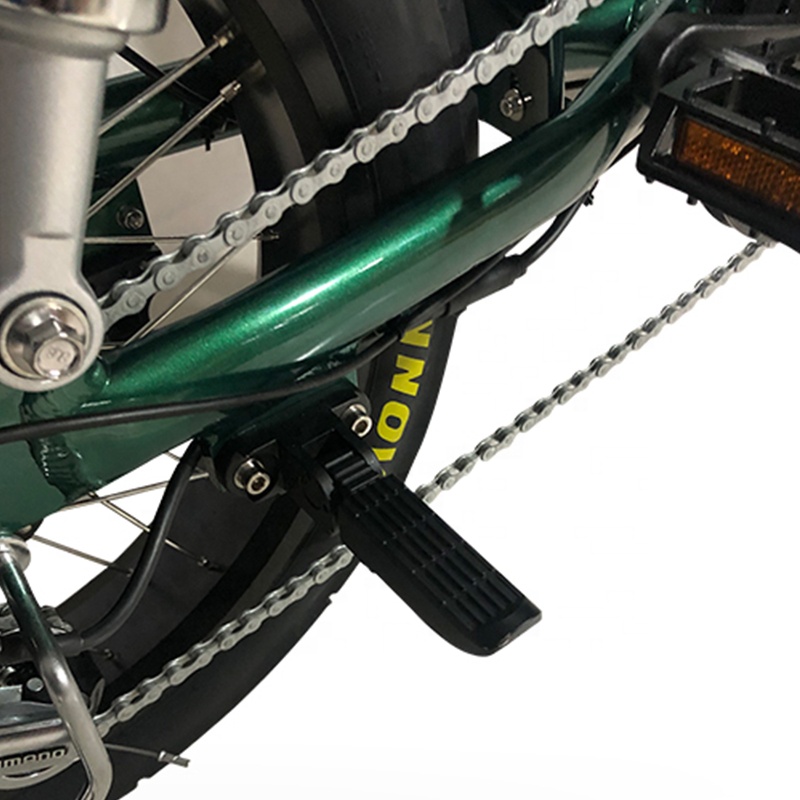

11.Rear foot supporter
12.self moulding made saddle
FrameAluminum alloy frame
Motor500W Bafang Dual motors(front and rear)
Battery48V 15AH lithium battery (samsung cells)
DisplaySW-LCD-U Screen(with USB port)

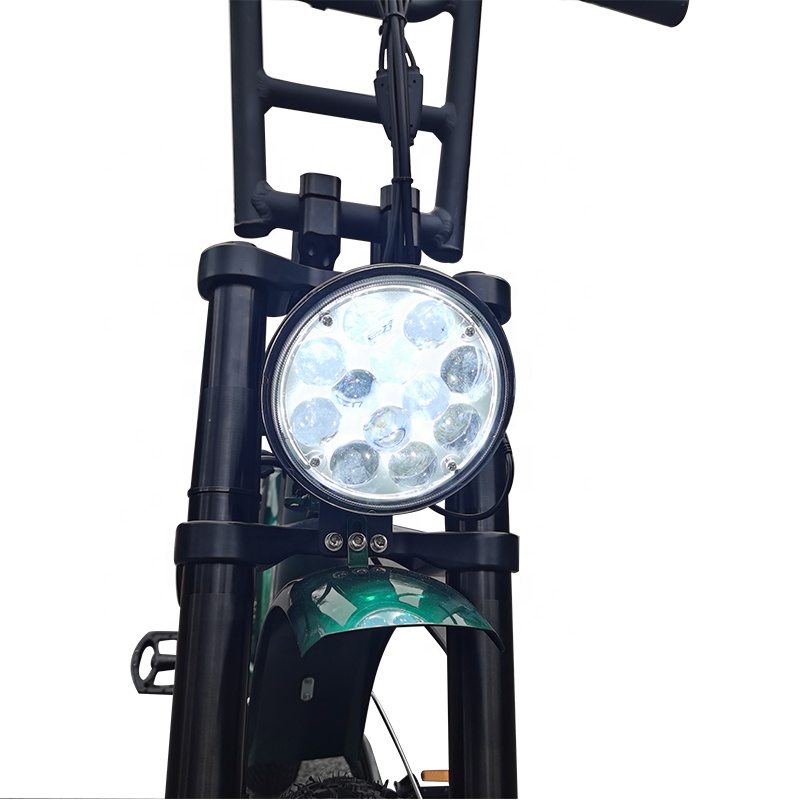

LightLED light for front & rear battery light
Tire20"*4.0 KENDA Tire
BrakeShimano disc brake for both
Front forkHydraulic suspenion
Rear suspensionSpring suspension
DerailleursSeven speed shimano gear shift
SaddleSelf moulding made saddle
Rear foot supporterRear foot supporter
Max speed25km-32km/H(can be faster without limit)
Driving modePAS&Throttle
Driving distanceApprox 120km per charging
Loading capacity150kg
Packing size160*32*80cm
N.W./G.W.35KGS/40KGS
Container loads:85pcs/20'GP; 160pcs/40'HQ
PRODUCT DESCRIPTION

  1       2

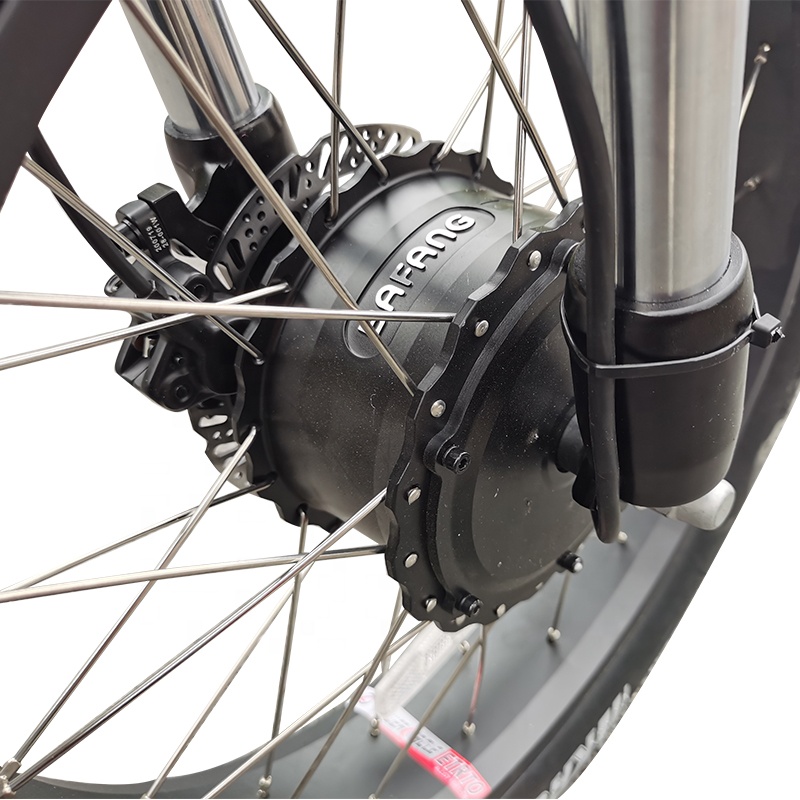

Front Motor500w Bafang front motor)                                      Rear Motor(500w Bafang hub motor

3          4

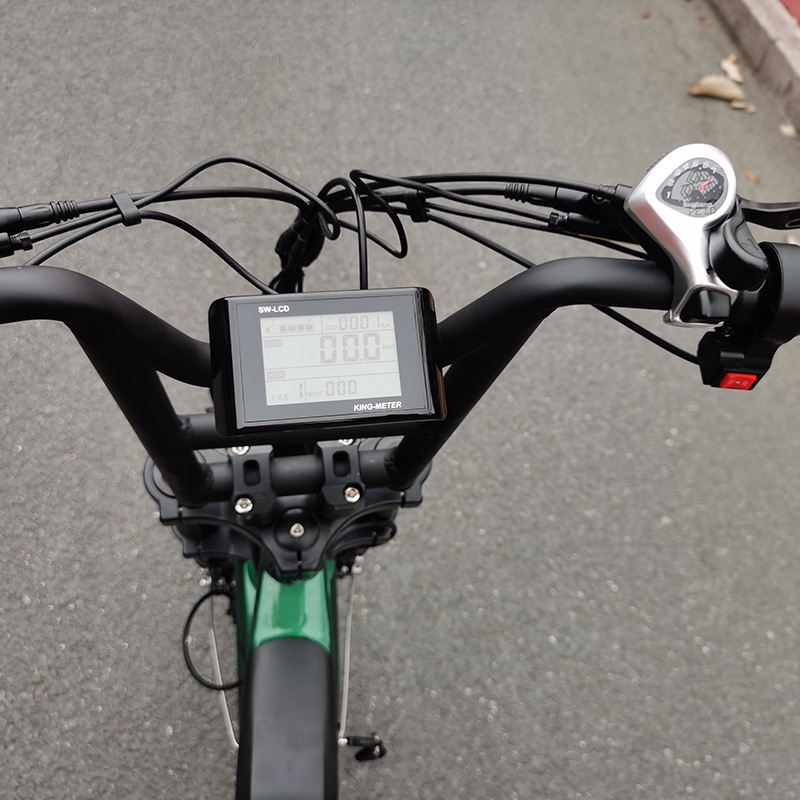

Display(LCD display)                                                                        Battery(48V 15Ah lithium battery

5        6

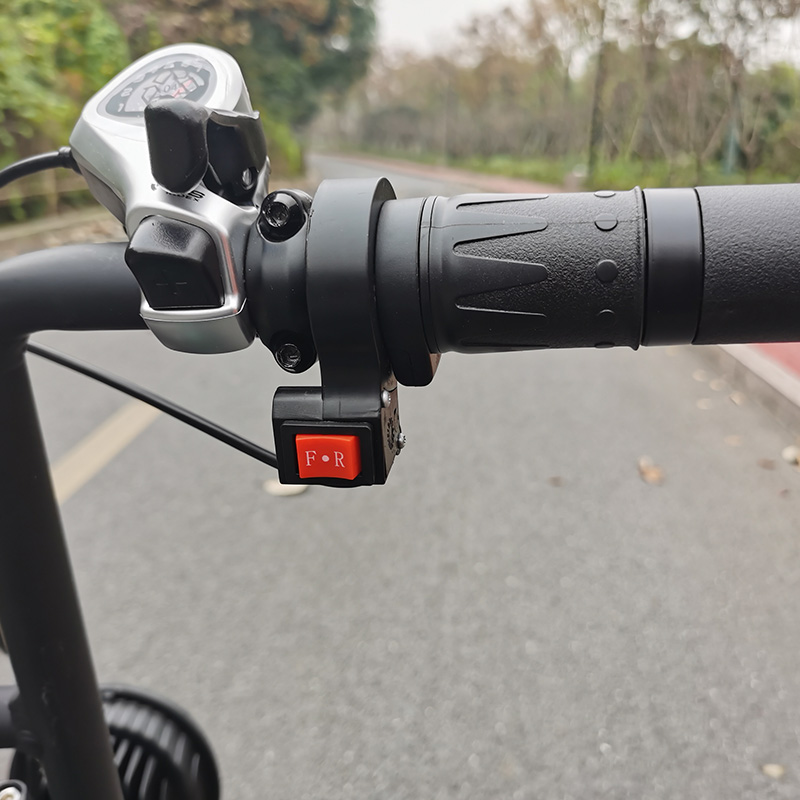

Suspension(Dual hydraulic suspension)                                        Driving Mode Switch(All wheel drive


HIGH CONFIGURATION ELECTRONIC CONTROL SYSTEM


2

BAFANG'S Dual Motor - POWERFUL & LIGHT

Motor is your most valuable commodity in an ebike .

Big and powerful is easy but small, lightweight, and powerful is a gigantic feat.


  • Bafang's newest and most innovative motor system

  • Tiny form factor

  • Over 95NM of torque

  • 28 to 1 gear reduction

  • Torque sensor

  • Front and rear dual motor design to provide more powerful power

  • Newly improved silent gear

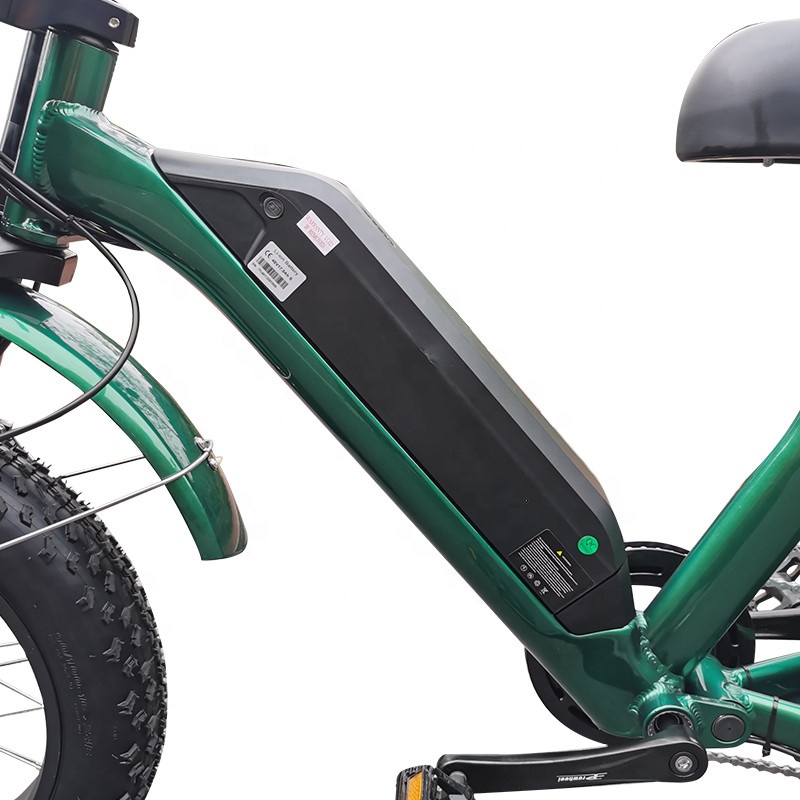

BATTERY PACK(samsung cells)

SUPER-ECS has been known for years as an ebike industry leader in ebikes. Without a good powerful light weight battery the rest of the bike will be landfill.  This bike utilizes a battery pack which has been integrated into the downtube, yet is easily removable as needed allowing for quick changes.   The battery also has its own power switch and usb charging port, allowing you to remove the pack and safely charge your battery in a more convenient location than the bike may be stored in.


CUSTOMER SUPPORT


  • 2 years on the Electronic control system

  • 1 year on the battery

  • 6 months on the other components
