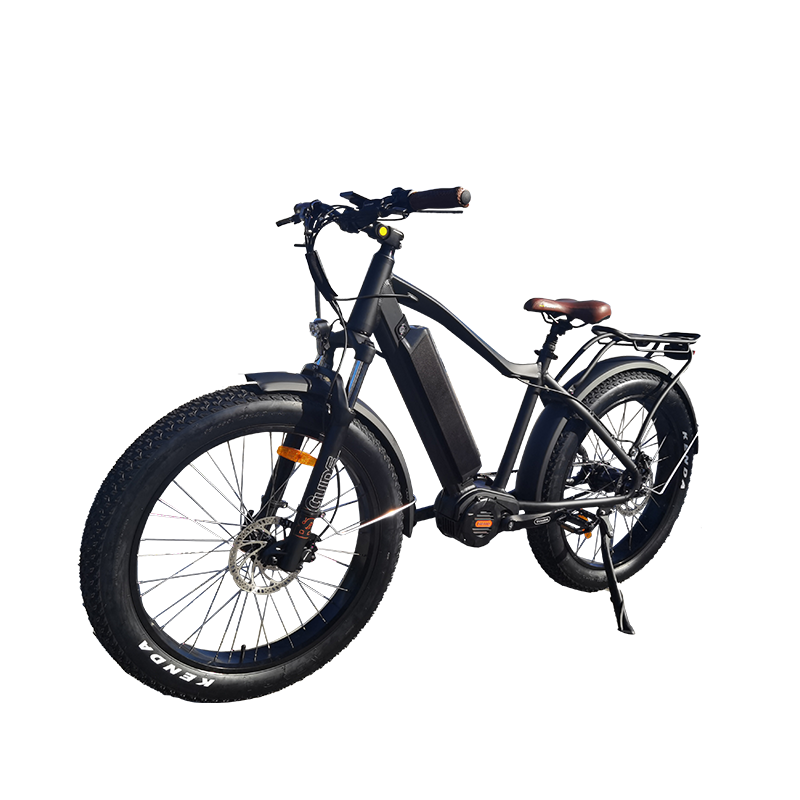

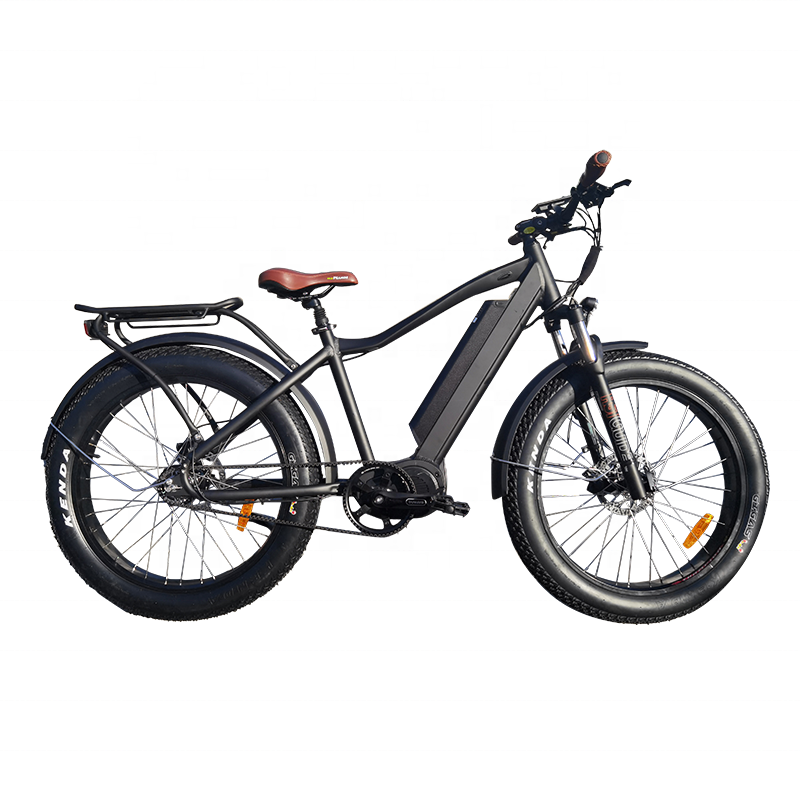

| PRODUCT DISPLAY |
| PRODUCT FEATURES |
1.Bafang G510 1000w mid dirve motor
3.48V 21AH lithium battery(Samsung cells)
4.Bafang C18 Colorful LCD Display
5.Aluminum alloy front fork with hydraulic suspension
6 Aluminum alloy seat post with suspension
| Frame | Aluminum alloy frame |
| Motor | 1000W G510 Bafang mid drive motor |

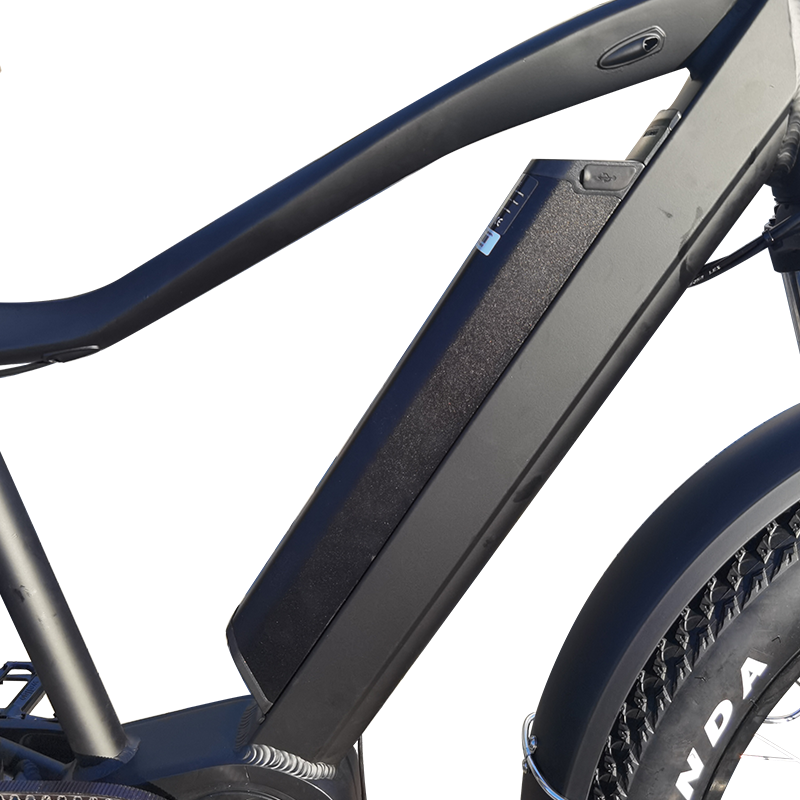

| Battery | 48V 21AH lithium battery(Samsung cells) |
| Display | Bafang C18 Colorful LCD Display |
| Light | LCD light for front |
| Tire | 26"*4.0 Tire |
| Brake | Tektro disc brake for front and rear |

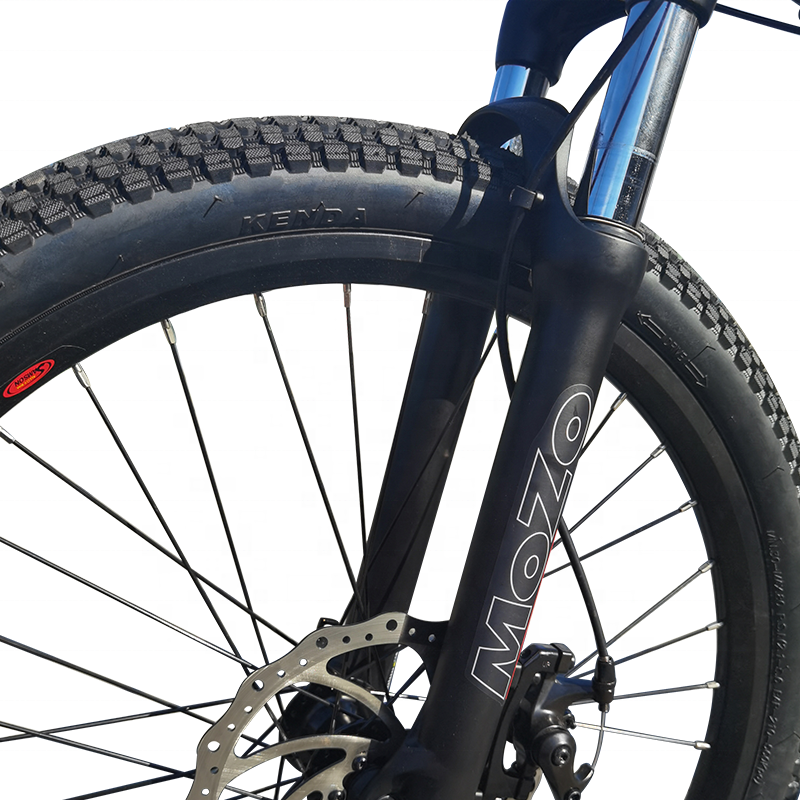

| Front fork | RST Hydraulic suspension fork with lock |
| Seat post | aluminum alloy seat post with suspension |

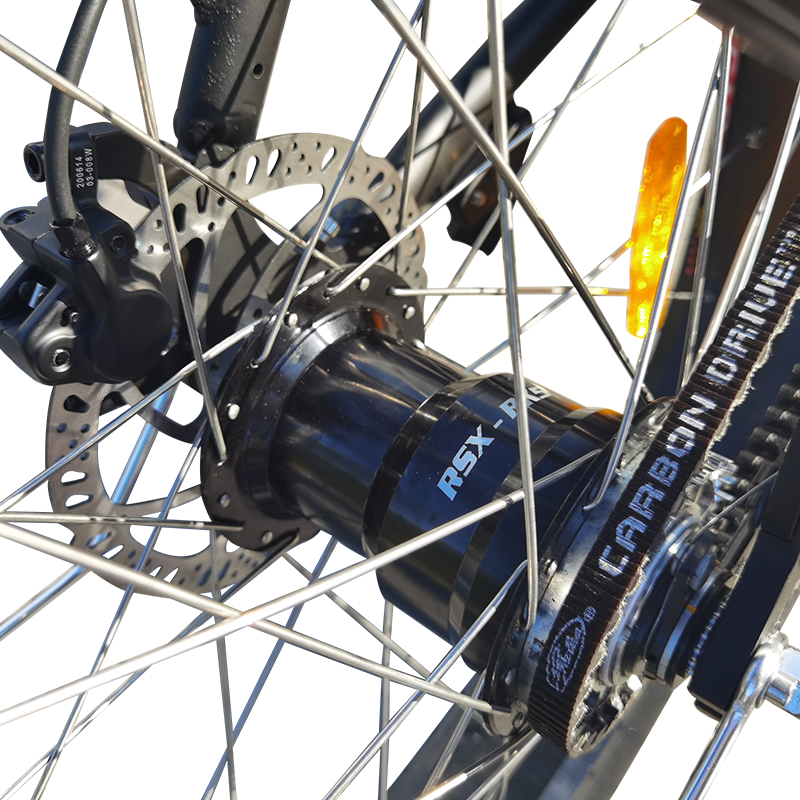

| Derailleurs | RSX internal 5 speed |
| Max speed | 25-32KM/H |
| Driving mode | PAS&Throttle |
| Driving distance | Approx 45-70km per charging |
| Loading capacity | 120kg |
| Packing size | 173*32*90cm |
| N.W./G.W. | 35KGS/40KGS |
| Container loads: | 60pcs/20'GP; 140pcs/40'HQ |
| PRODUCT DESCRIPTION |
Motor(1000w Bafang mid drive motor) Battery(21ah lithium battery provide enough power,make the mileage longer.)

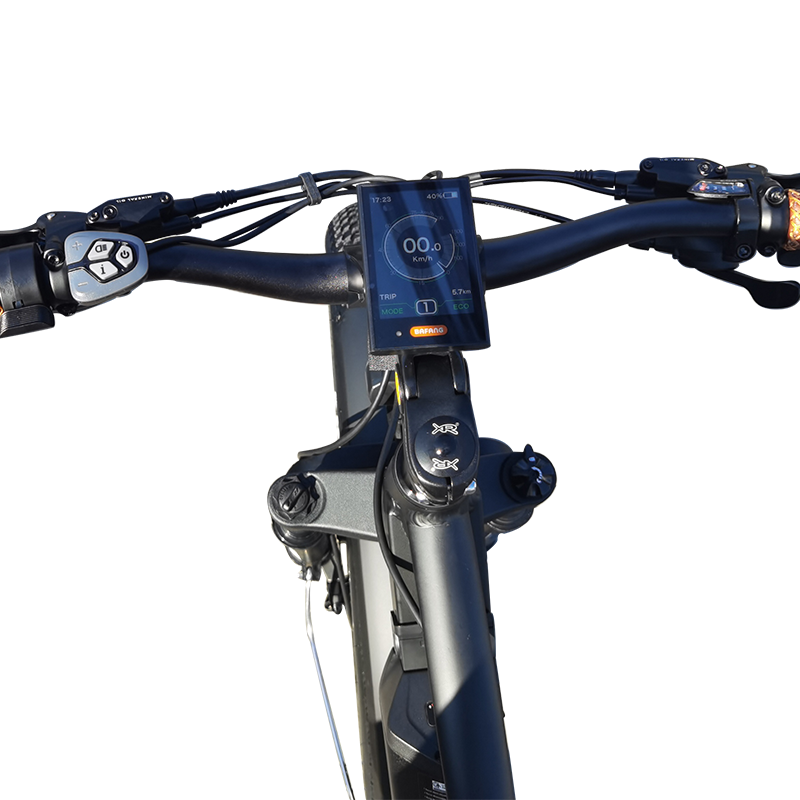

Display(Bafang C18 Colorful LCD Display)

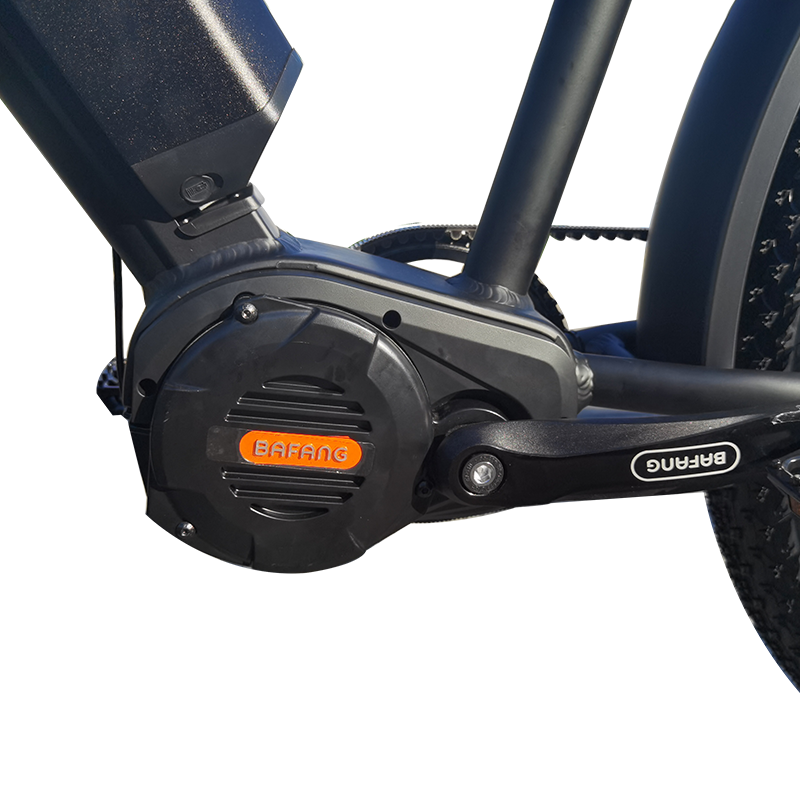

| 1000W BAFANG'S MID DRIVE MOTOR - POWERFUL & LIGHT |
Bafang's newest and most innovative motor system
Tiny form factor
2000 watts with our controller
Over 95NM of torque
28 to 1 gear reduction
Torque sensor
Real estate is your most valuable commodity in an ebike. Big and powerful is easy but small, lightweight, and powerful is a gigantic feat.The G510 is the most stable offering from Bafang, designed for integration with production bikes.SUPER-ECS has worked with prototypes of this drive for 2 years,and with SUPER-ECS'S own proprietary touches to make it smooth, powerful and most importantly, reliable.
The 28 to 1 gear reduction using one of the most advanced gear reductions in the industry is not only quiet (for an all metal gearbox), but now with steel gears it is also reliable. The importance of gear reduction in a bike like this is not only does the motor spin at its most optimum efficiency level, (electric motors love to spin fast) the gear reduction has the final sprocket spinning slow enough so that you actually get pedal cadence at high power, a very hard thing to accomplish on a high power drive.
| CUSTOMER SUPPORT |
2 years on the Electronic control system
1 year on the battery
6 months on the other components
