10 Pin motor connectors for ebike
10 Pin motor connectors for ebike
10 Pin motor connectors for ebike
10 Pin motor connectors for ebike
paragraph1

Samples

≥1

price

Depend on quantity
Quantity:
库存: 0
Inquire
Add to Basket
Electrical Characteristics
Rated Voltage48V AC/DC
Rated Current15A
Withstand Voltage700VDC
Contact Resistance<10mΩ
Insulation Resistance>20MΩ
Mechanical Characteristics
Durability200 Cycles
Mating and unmating force50N ~ 100N
Environmental Characteristics
Operating Temperature-25 ℃ ~ 80℃
IP RatingIP66

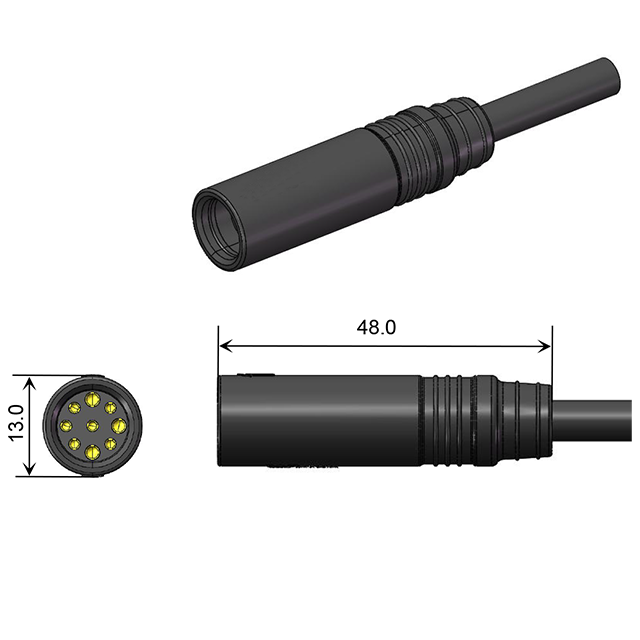

Product Specification
Product Sizeᴓ13.0mm
Mating Length72.3mm
TerminalGold-plated Copper
Wire Specification1.5mm²/0.2mm²
